DGV to single choke adaptor
Kit to allow fitment of a Weber
32/36 DGV/DGAV/DGEV
or
38 DGAS/DGMS/DGES
to replace a single choke downdraft carburettor

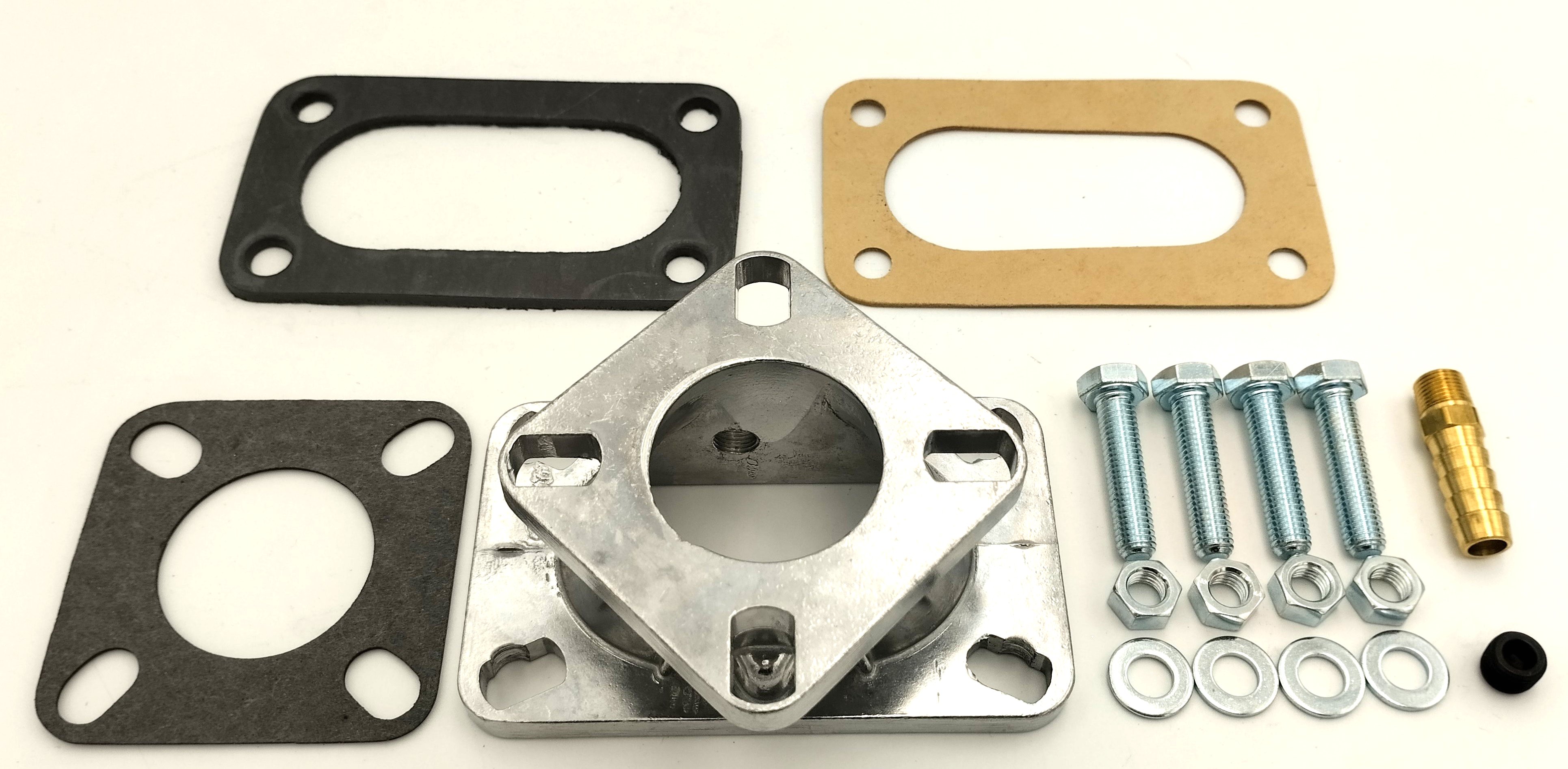

Kit contains
Adaptor
10mm / 3/8 brass take off plus blanking plug if not needed
Gaskets
Bolts
Studs, nuts and washers
Overall height of adaptor less gaskets is 43mm
Square base mounting flange allows the carburettor to be mounted in the correct orientation with the fuel inlet
pointing forward.
Base flange dimensions can be downloaded here
A universal linkage kit, and a selection of air filters can be found under the Related products tab
