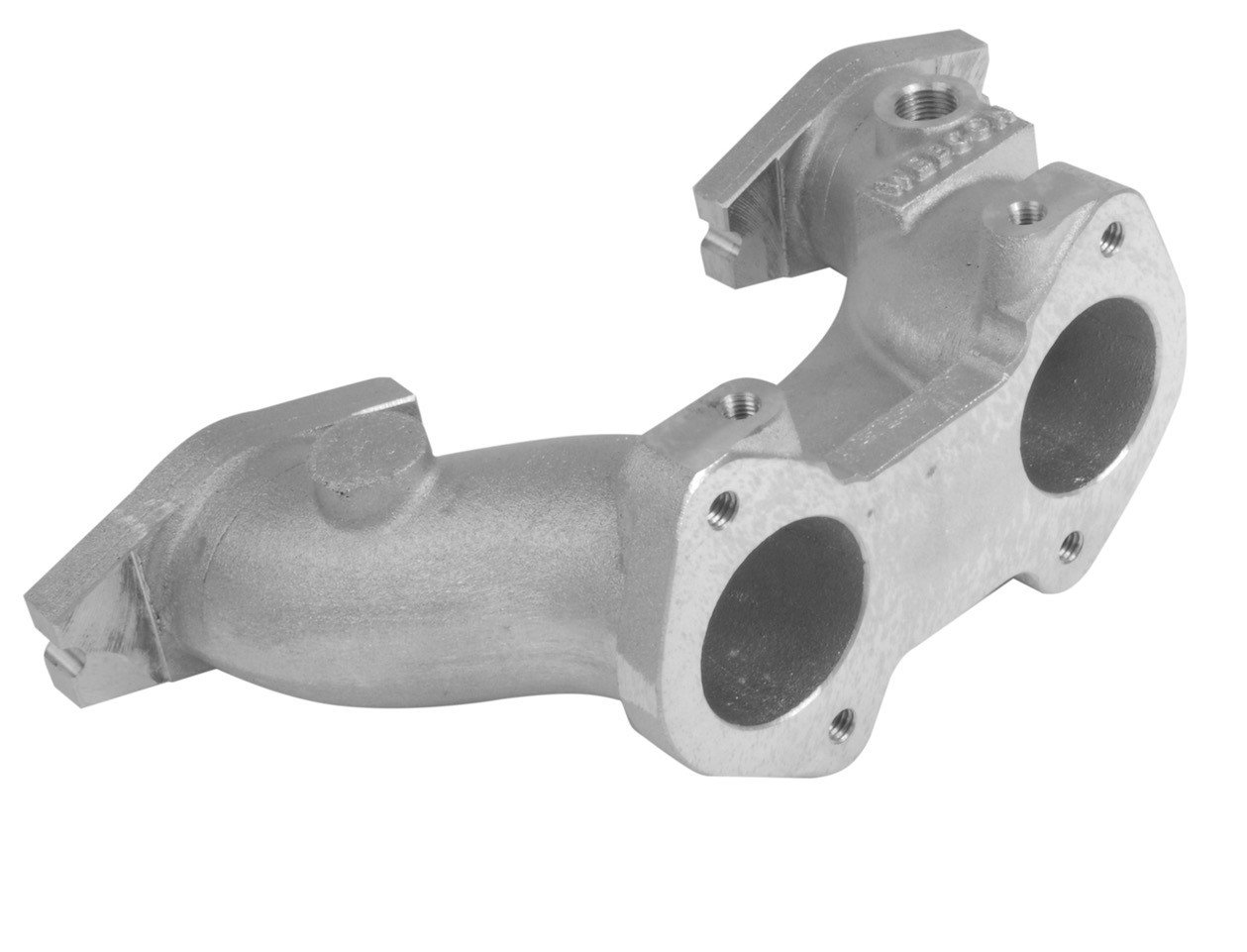

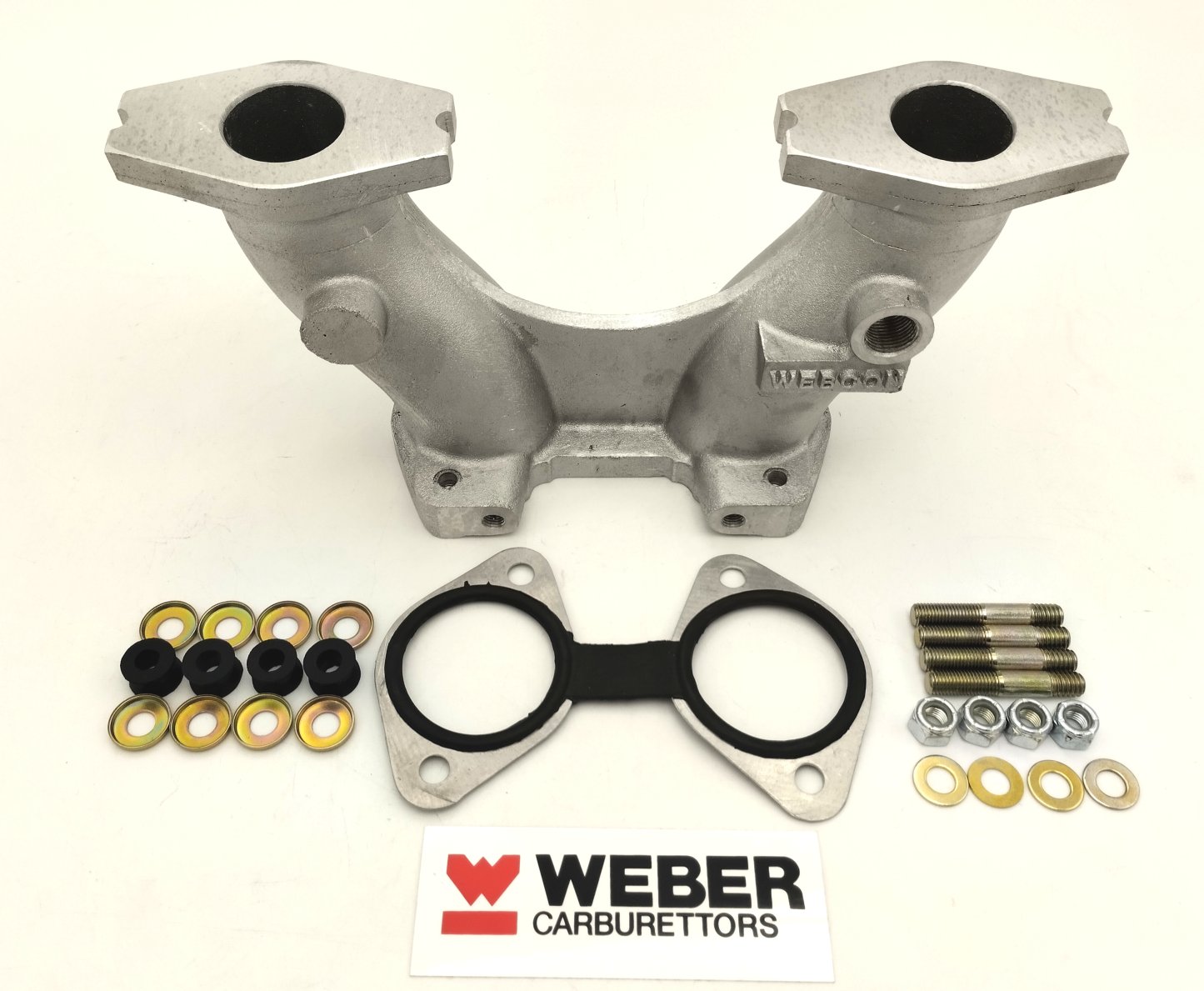

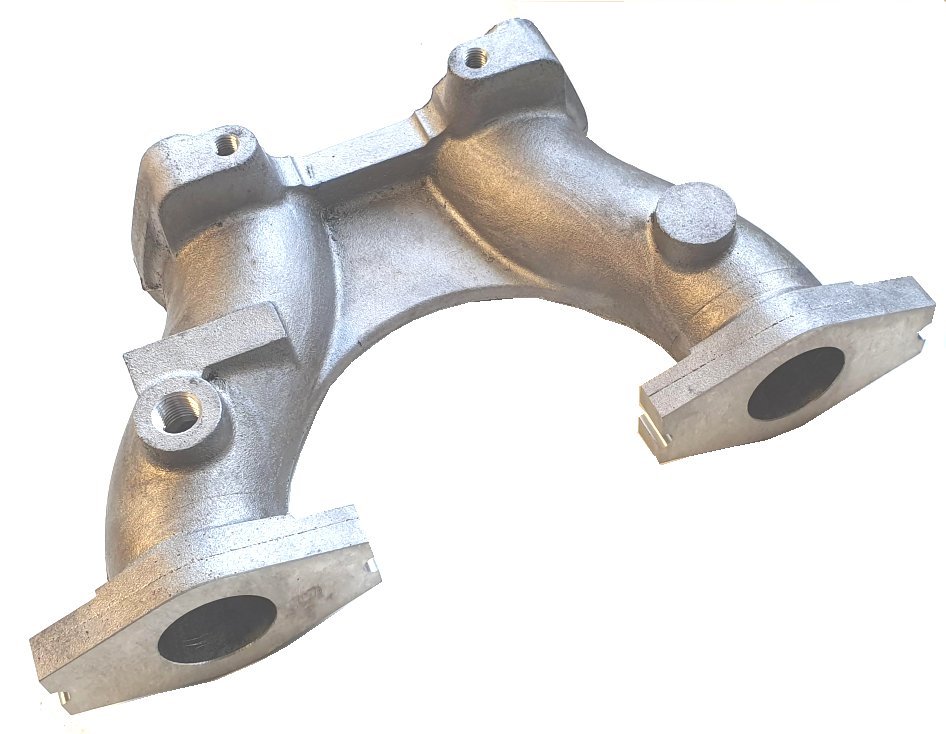

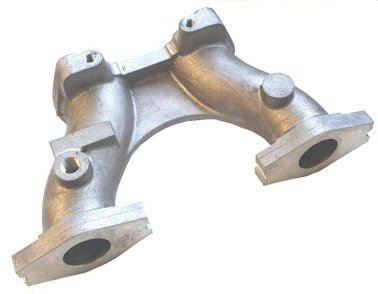

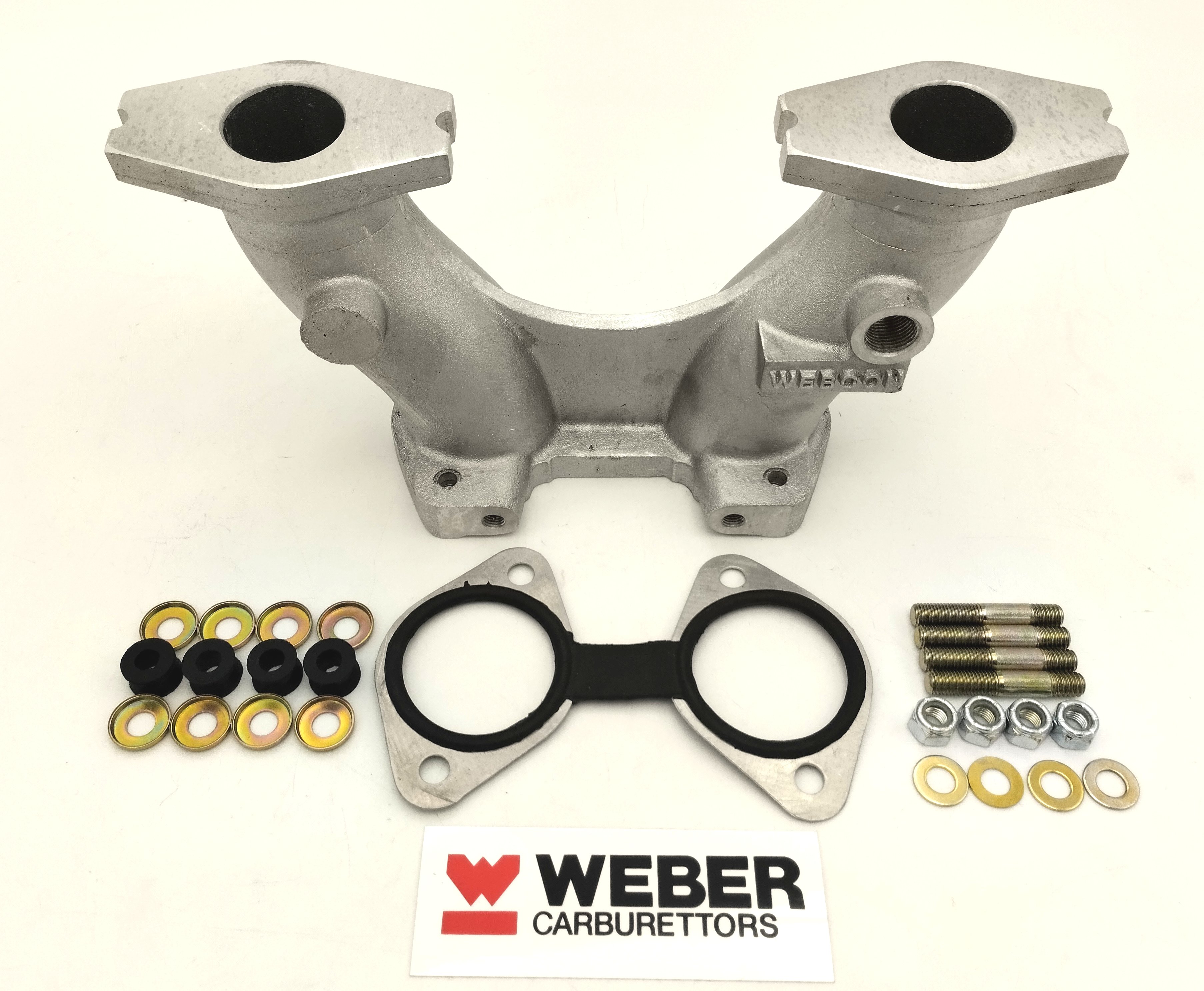

Top quality British made WEBCON inlet manifold
125mm long Cast Aluminium Intake manifold to fit 1 x DCOE or alpha throttle body to B Series Austin / MGB Engine. Will require studs/nuts, linkage and associated installation parts.
Head ports are 33mm
Carb ports are 44mm (to allow port matching to 45mm to match carb)
Overall length 125mm
Head flange depth 14mm
Manifold is machined to clear carb cold start unit when using soft mount kit FK0001 or Misab plates
Features 2 x captive 5/16 UNF threads to allow fitment of rod linkage system
Carb mounting threads are 5/16 UNC

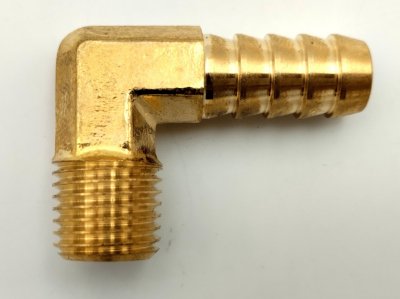

Servo tapping 1/4 NPT - Please see Related products tab for servo union and blanking plug
