Rover V8 4 x Weber 44 IDF
Webcon 4 x 44IDF performance kit for Rover V8 3.5 / 3.9

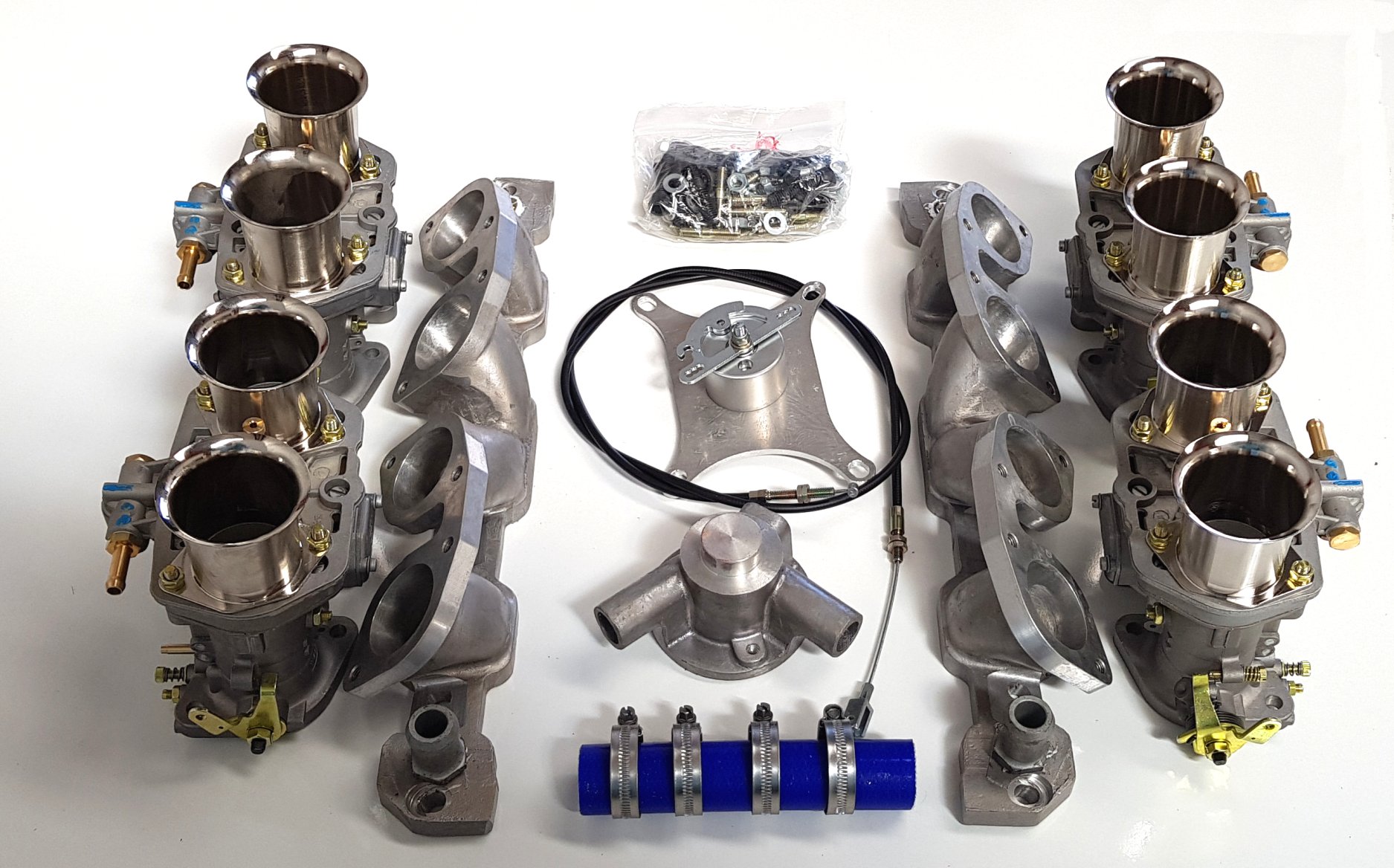

Produced in conjunction with one of the UK's leading Rover V8 specialists, PRV401 features a superb quality UK manufactured pair of intake manifolds and 4 genuine Spanish Weber 44IDF carburettors
The kit is also supplied with thermostat housing and a new throttle cable and custom designed throttle quadrant to ensure smooth and reliable throttle pedal action.
The 44IDFs in the kit are supplied with the following "starting point" calibration which will allow the engine to start and run.
Venturi 36mm
Auxilliary venturi 4.5
Main jet 135
Air corrector 175
Emulsion tube F11
Idle jet 50
Pump jet 50
To achieve maximum power, driveability and efficiency, we recommed that you have the carburettors calibrated on a rolling road.
*This kit is made to order and usually has a 4 week lead time.
Please note that, owing to our policy of continous improvement, kit contents may be subject to change withour prior notice.

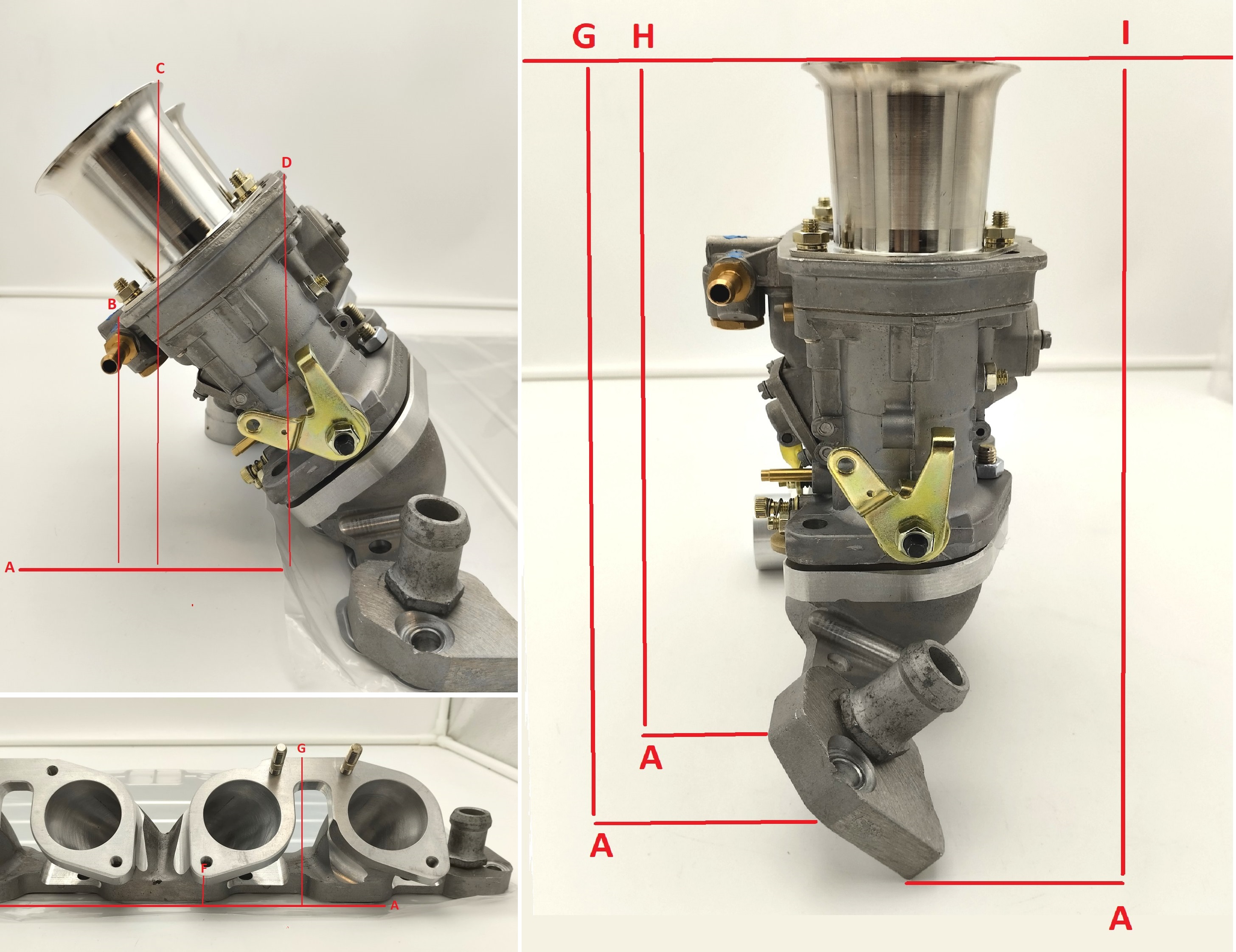

Height dimensions
Height includes base gasket for manifold and carburettor.
Point A is the underneath of the base gasket of manifold.
A to B = 11.2cm
A to C = 18.3cm
A to D = 15 cm
A to E = 9cm
A to F = 3cm
Vertical position
A to G = 20.2cm
A to H = 22cm
A to I = 23.5cm
