EFI Fuel pump / Swirl pot assembly

WFP600 2.1kg
Price (Excl VAT) £288.75

EFI Fuel pump / Swirl pot assembly


EFI Fuel pump / Swirl pot assembly

When converting a vehicle to electronic fuel injection you have to consider adding a swirl pot to prevent fuel starvation and a high pressure fuel pump to meet the requirements of the new system.

Now Webcon has introduced the two combined into one and the assembly is suitable for Weber Alpha and all other popular makes Of EFI systems

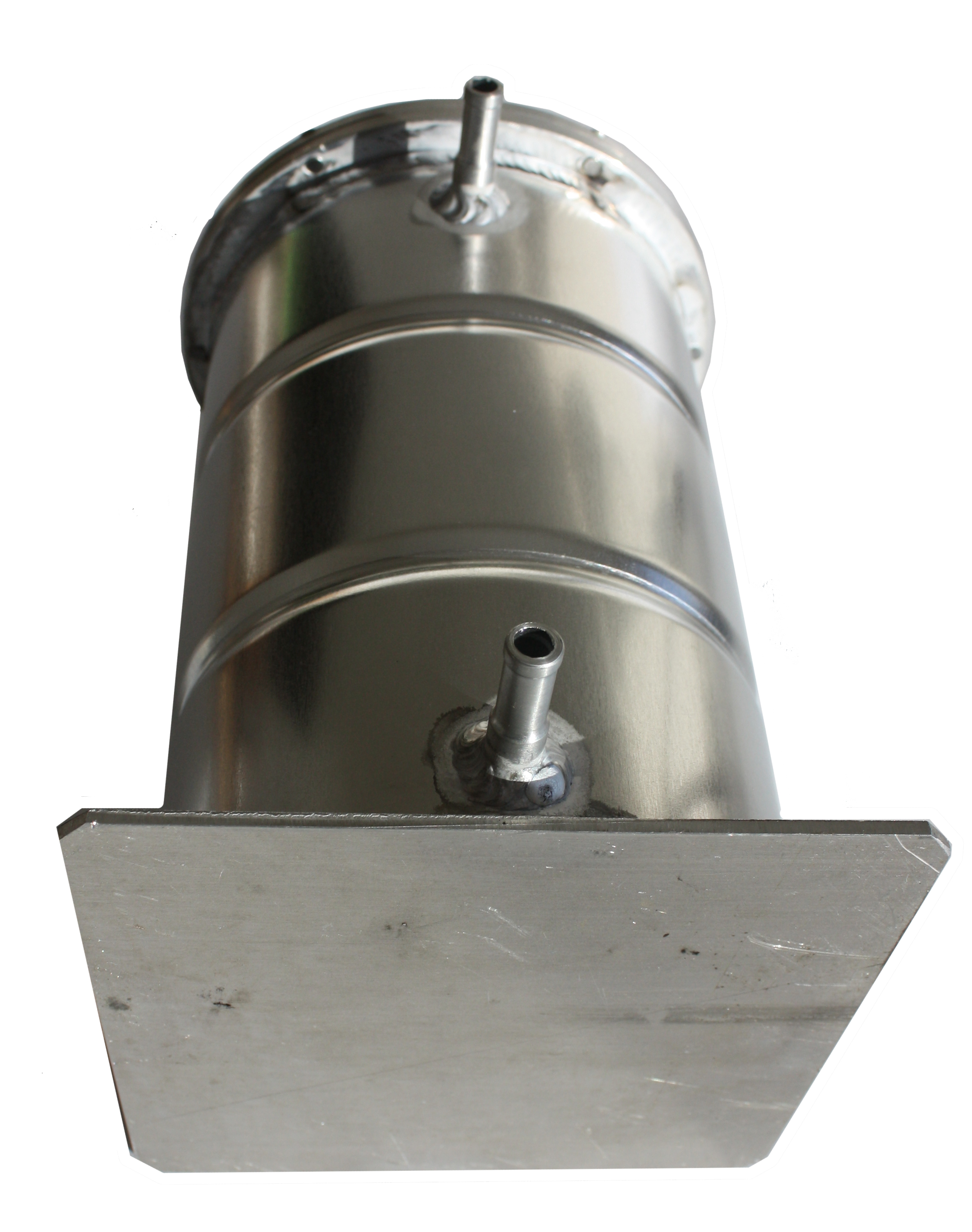

The swirl pot is hand made from lightweight alloy and comes with a blank mounting base that can be drilled to suit.

The high pressure fuel pump is based on the outstandingly successful Webcon WFP096 fuel pump  and is a perfect fit inside the swirl pot to keep overall dimensions to a minimum.

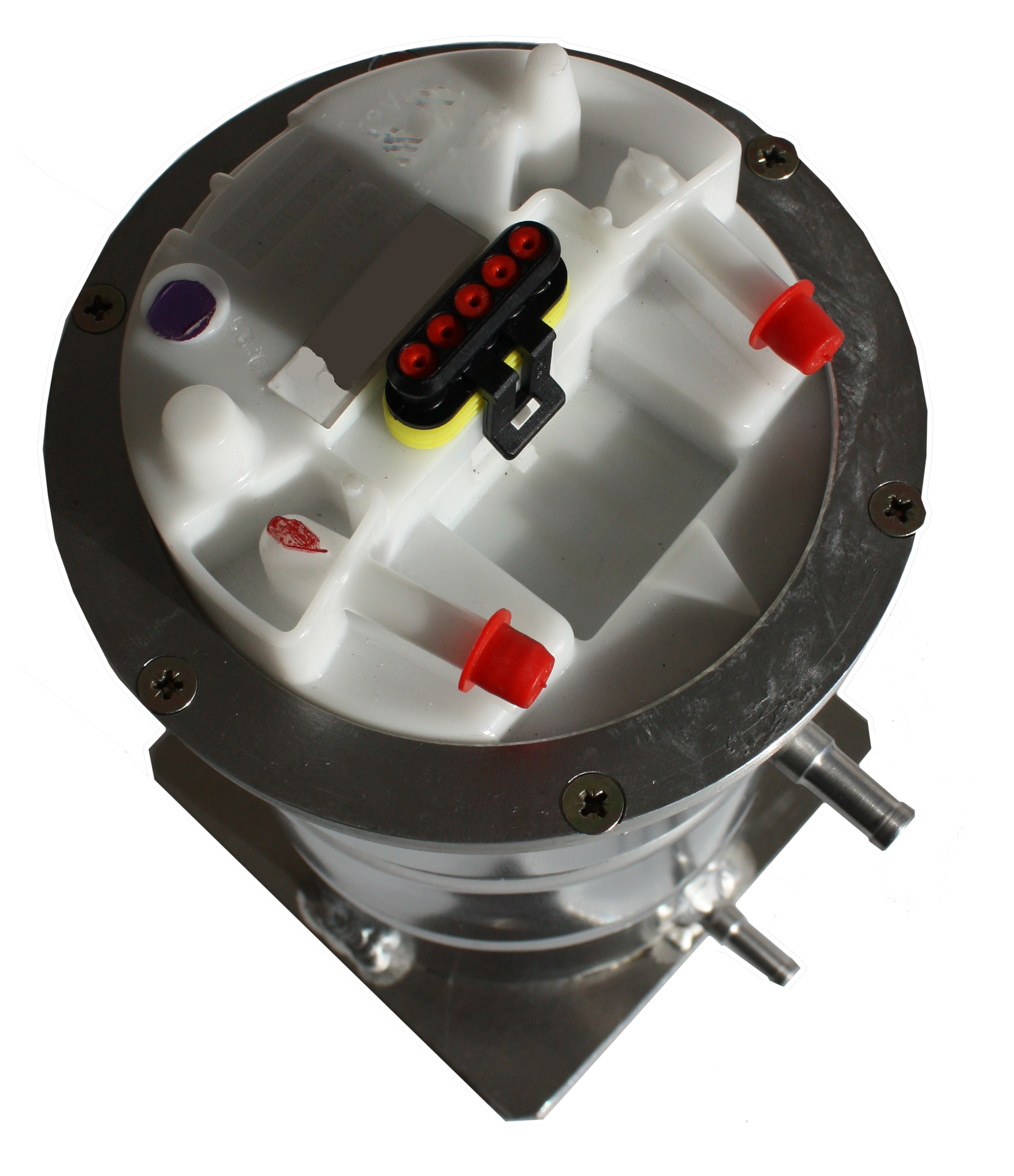

Low pressure fuel from the original tank is fed into the lower side inlet via a low pressure electric feed pump such as this one 17303, and excess fuel and vapour is fed back to the tank via the Upper, restricted outlet. The high pressure feed outlet to the fuel rail and return from the pressure regulator are neatly contained on the top of the unit along with the electrical Connection.

WFP600 is especially useful when converting a classic car to EFI as there tends to be little room available to fit a seperate fuel pump and swirl pot.

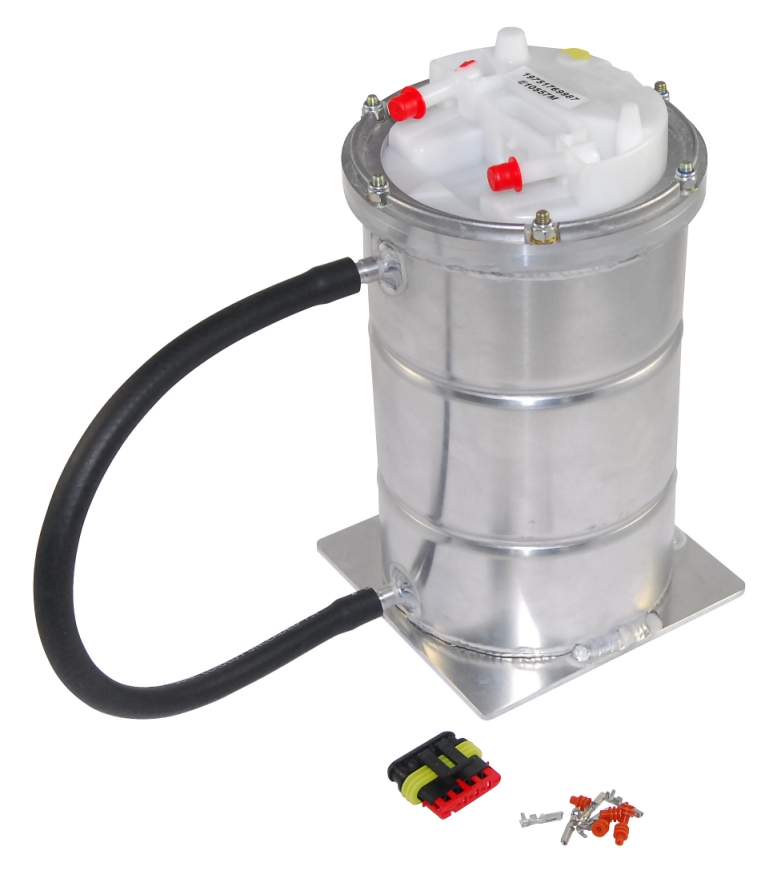

The kit comes complete with a length of connecting hose that can be cut as required and ready-to-wire electrical connectors.

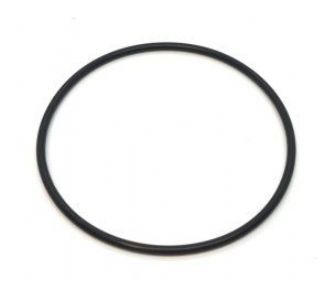

WFP600 is 235mm high by 140mm diameter. Please see Related Products tab for main body O ring
