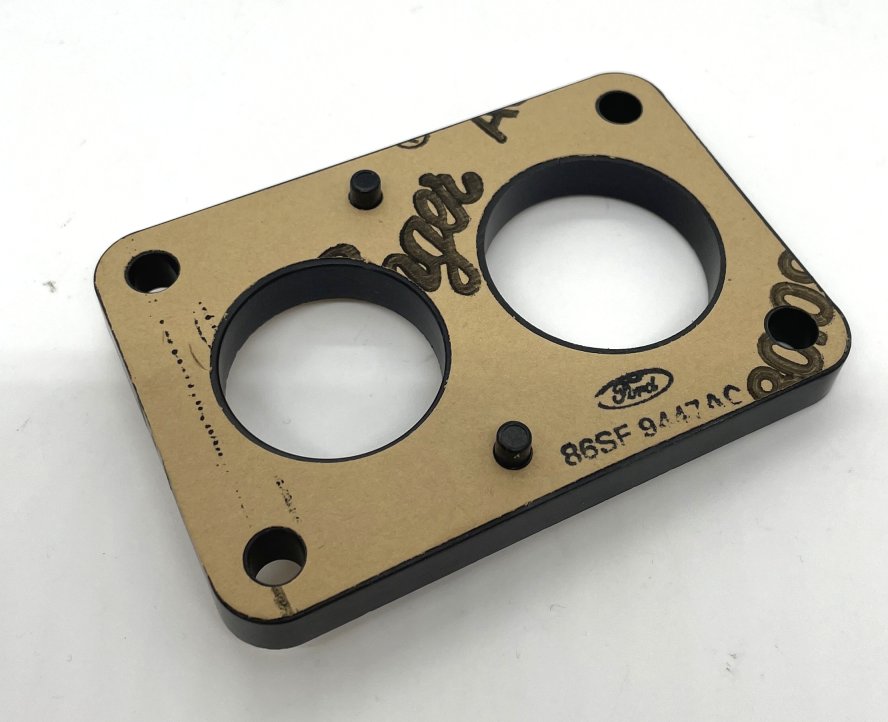

Ford Escort 1.3 Base Insulating Gasket 26 / 28 TLDM
Fits Escort 1.3 OHV Valancia
The stud pattern will fit the TLDM but note the port hole sizes are 30mm & 34mm.

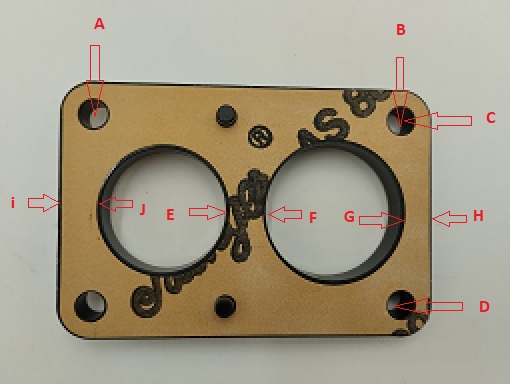

Please see photo and dimensions below.
A to B 75mm between centres
C to D 46mm between centres
E to F 10mm
F to G Hole diamiter for port 34mm
G to H 8.5mm
I to J 10mm
J to E Hole diamiter for port 30mm
