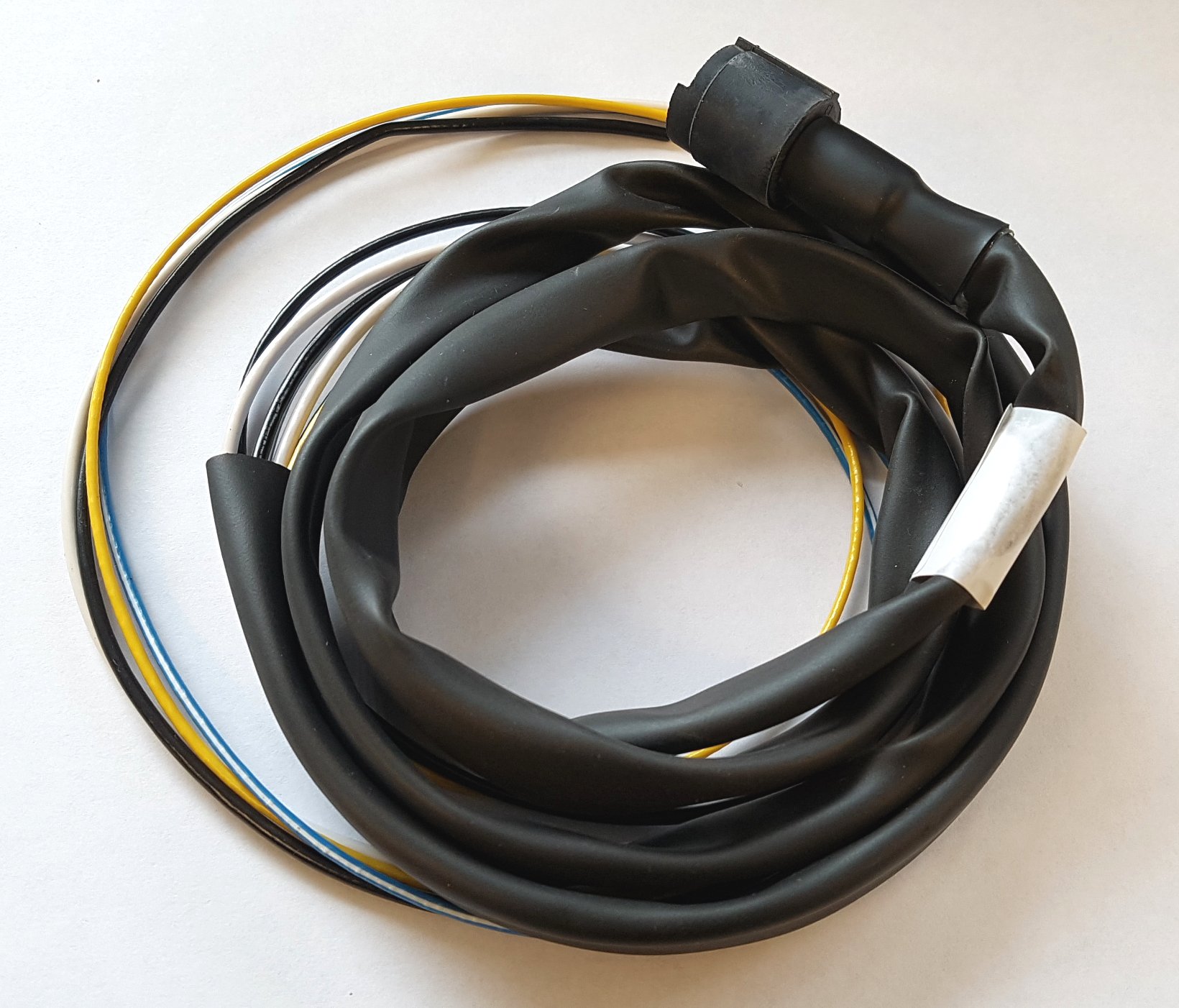

Alpha Power feed harness
Replacement power feed harness used in many Alpha kits
This plugs into connector QQQQ, and supplies the Wiring Harness (3) with power, ground, and takes the
tacho and gear shift lamp outputs from the harness. The table below shows how the wires should be connected
Pin No’s. Wire Colour Connection
1 White Power +12V Ignition Switched
2 Yellow Tacho Signal
3 Black Power Ground
4 Blue/White Gear Shift Lamp
