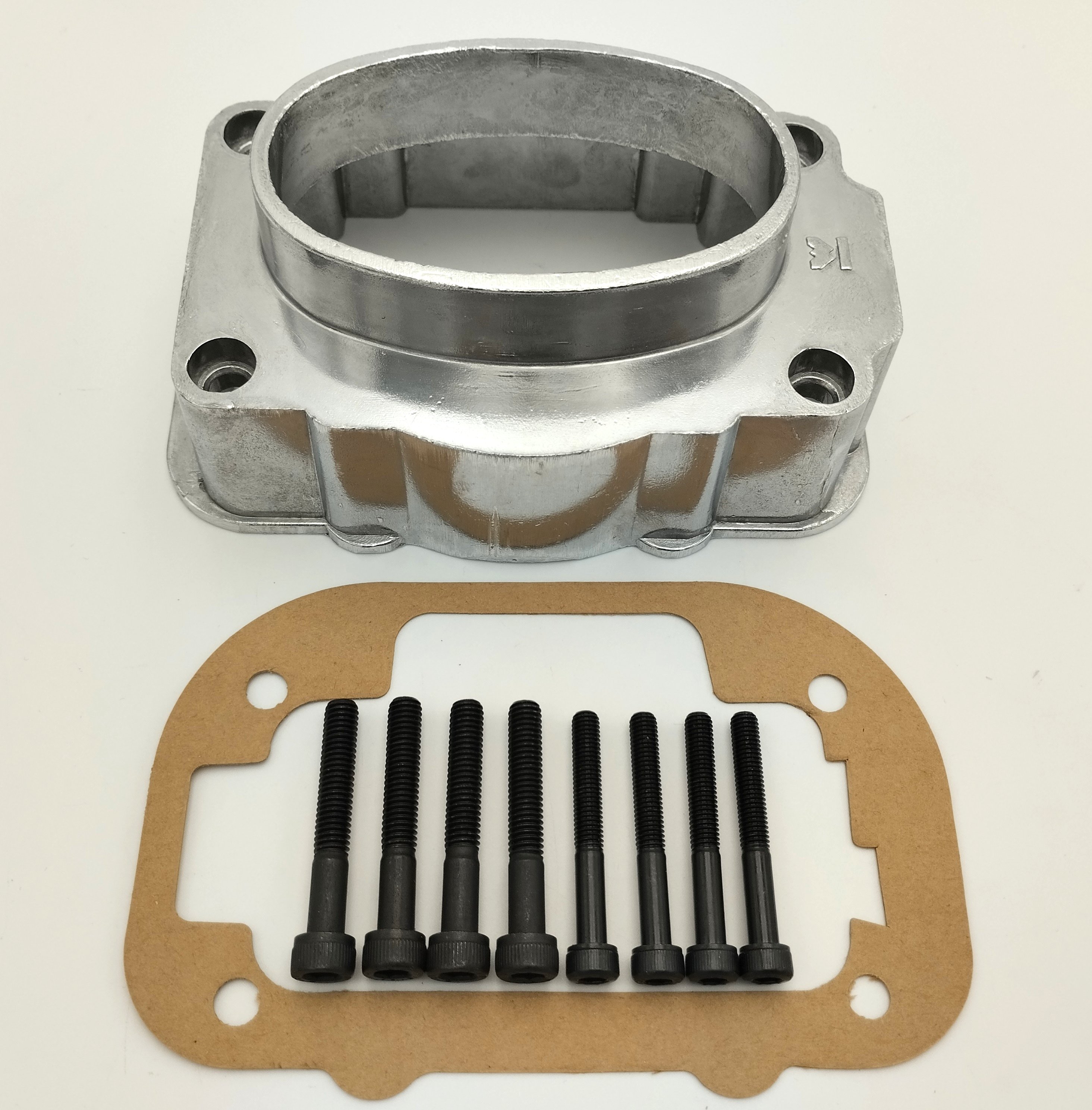

Air filter adaptor to enable use of an original air cleaner system on Opel kits using a Weber DGV and DGAV
Used in Webcon kit parts numbers -
2268092500
2268090500

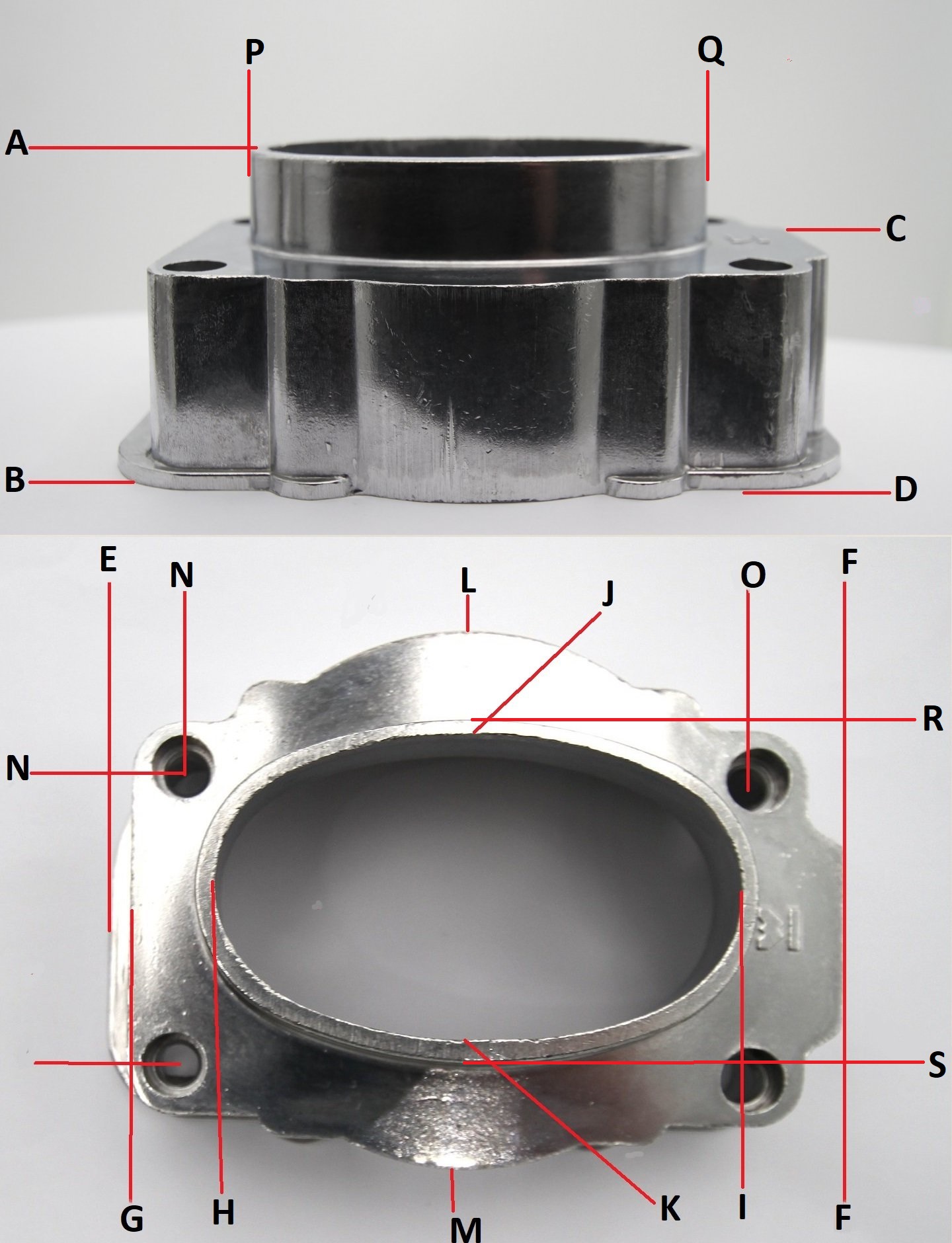

Dimensions as follows (see photo)
A to B = 58mm
C to D = 38mm
E to F = 136mm
G to F = 125mm
H to I = 84.5
J to K = 49mm
L to M = 95.5mm
N to O = 100mm
P to Q = 91.5mm
R to S = 56mm
