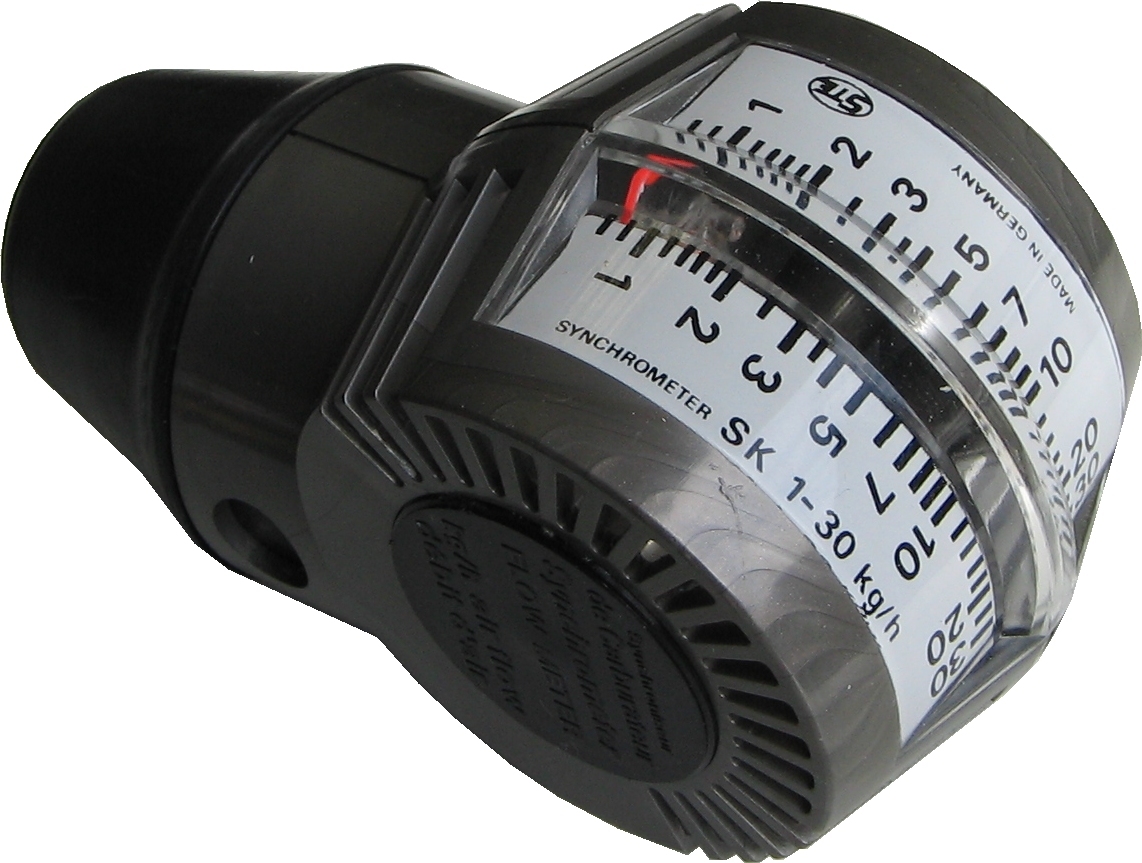

Synchrometer SK 1-30 Kgh

9800100000 0.2kg
Price (Excl VAT) £60.33

Synchrometer for carburettor / throttle body balancing


The Webcon synchrometer allows for very accurate measurement of airflow through a carburettor or throttle body. Precise adjustments can therefore be made to synchronise airflow on multi barrel applications and to secondary barrel idle settings on progressive twin choke carburettors.

The synchometer can measure high airflows without causing an obstruction and affecture mixture strength.

9800100000 is the general purpose version measuring from 1-30 Kgh and is suitable for most applications using 40/45 DCOE and 40/44 IDF

For higher performance applications using 48mm and above carburettors or throttle bodies, please see part number 9800099900

When using with Weber 40 DCOEs and space beyond the air horns is restricted, elbow adaptor 9800100600 is required, and for 45DCOEs, adaptor 9800102600 will also be required

Please note that the fitting instructions and adaptor application list can be found here
