These solid-state technology electronic fuel pumps provide outputs up to 132.5 liters/hour and .68 bar. Facet/Purolator Cube Fuel Pumps are self-priming with a gerneral dry lift capacity 0.3 metres . Two universal models provide complete coverage for all low and high-pressure carburettor applications for cars, vans, RV’s, and light trucks, in addition to many diesel applications. All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives.

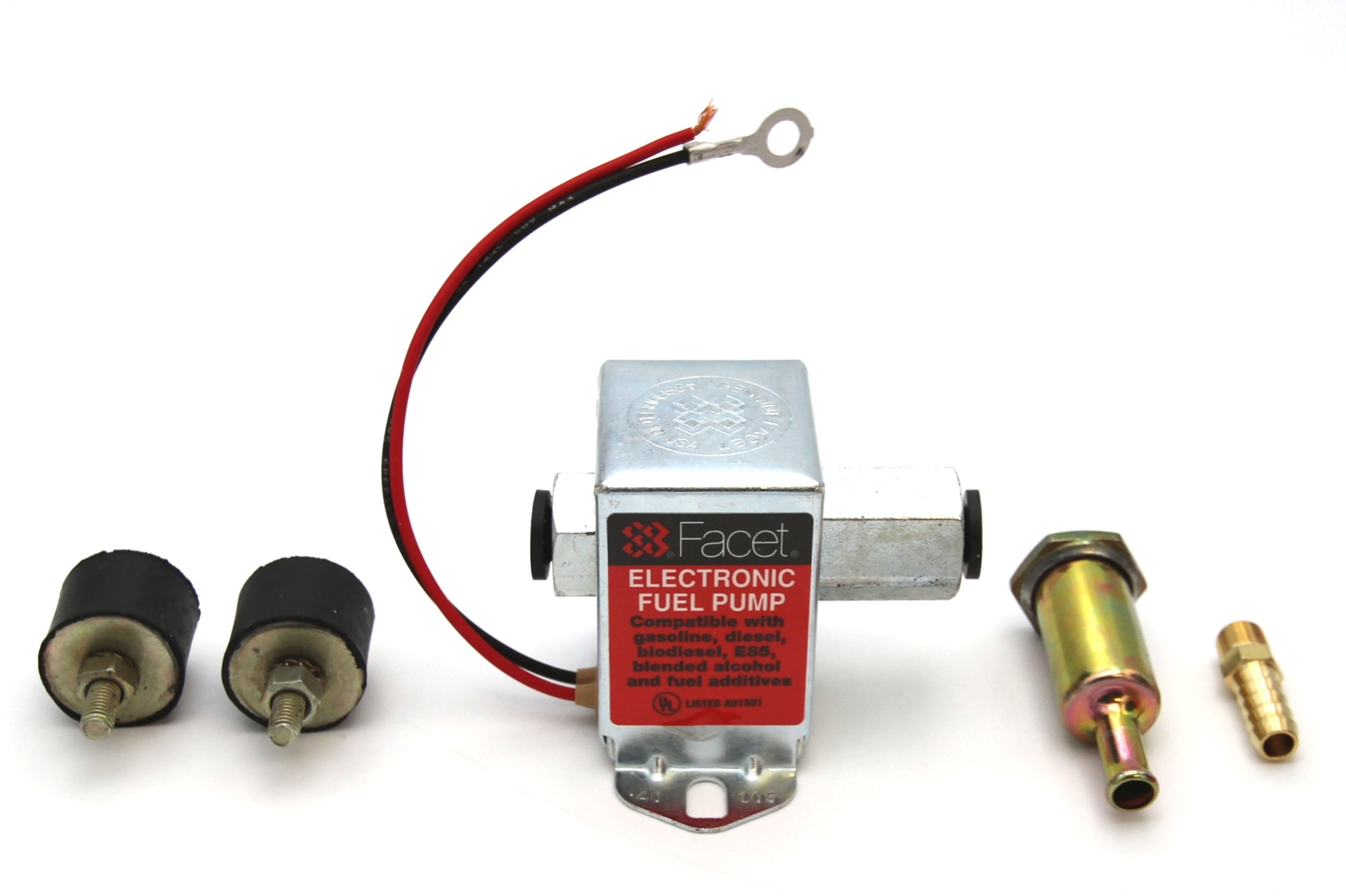

Contents
1x Pump (40105)
1x 8mm Straight Union (FPA903A)
1x 8mm Filter Union (FPA906)
1x Facet Mounting Kit (FPA905)
Specification
Pump:- 40105
Voltage:- 12v
Earth:- Neg
Pressure (Psi):- 3.0-4.5
Flow:- US Gallons/Hr 30
Dry Prime Height in Mtrs:- 0.3
Thread Size:- 1/8th nptf
Operating Temperature:- -31º F to 55° F (all Models)
Legal Requirements:- Certified & Complies With EEC 95/54 Requirements
Length:- 75mm
Height:- 60mm
Weight:-0.5kg
Fuel Union Installation:- When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal
