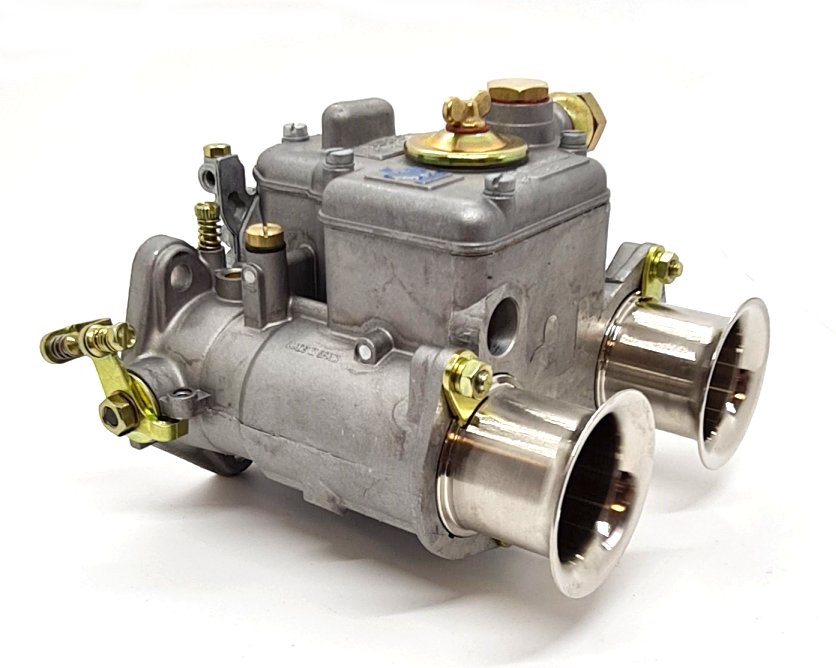

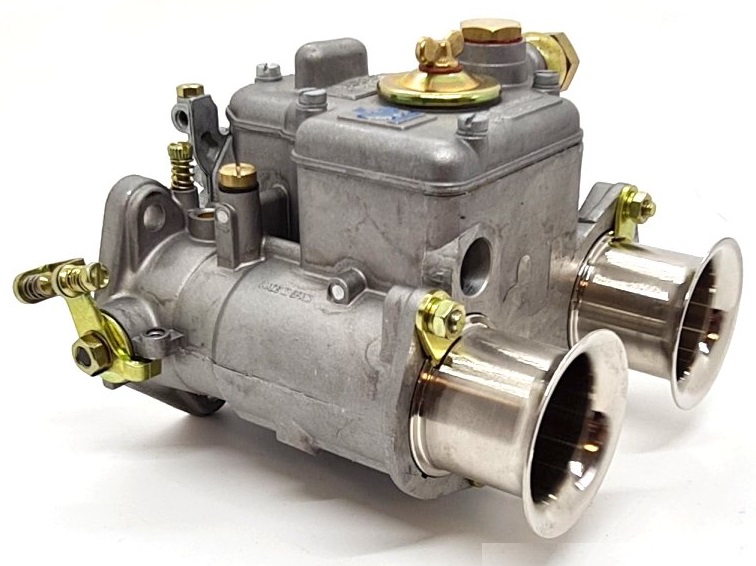

40 DCOE 18k
Genuine Spanish Weber carburettor
Historic 40 DCOE 18 K model as supplied to the Japanese market
Supplied with the following calibration
Venturi 32mm
Aux Venturi 3.5
Main Jet 125
Air Corrector 220
Emulsion Tube F11
Idle Jet 50F11
Pump Jet 45
Pump Spill 50
If any changes are required to the jetting, please note these in the box above the Order button
This is a historic version of the 40DCOE, and features the following differences to the 40DCOE151
Progression wells have plugs instead of screws
Has no idle air bypass screws
Has spring retained Auxilliary Venturis
Has no raised galleries on the top cover
Does not say Made in Spain on the top cover
