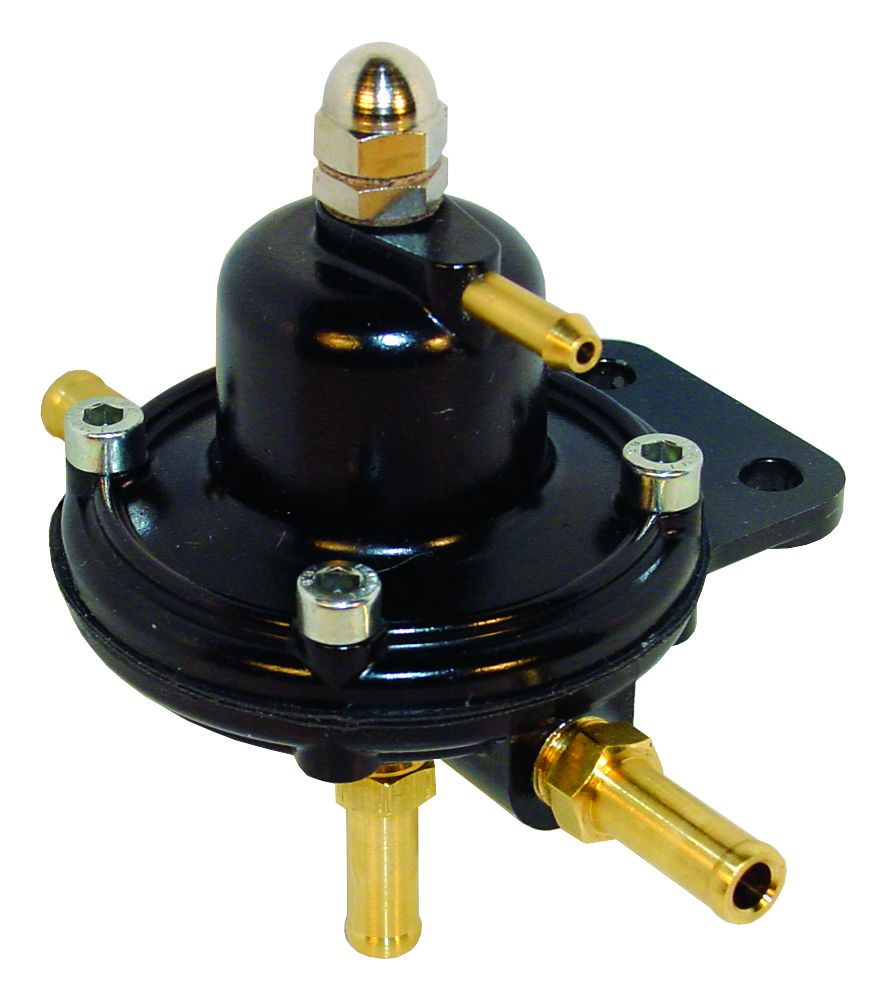

This is a bypass/converter fuel pressure regulator for carburetted engines, both aspirated and turbo.
You
can fit any kind of pump, both low pressure and high pressure for
injection . At output you always have a very
stable pressure to carburetter/s, with high flow. With turbo
applications on carburetters, sending the boost to 5 mm connector on the
lid fuel pressure rises with 1:1 rate.
This is a genuine Malpassi regulator and is manufactured with a
special alloy casting, each piece is assembled by hand and tested to
assure maximum performance
Please see Related products tab for Pressure gauge and fuel line adaptor
- For applications on aspirated a/o turbocharged carburetted engines
- Compatible with alcoholed fuel (E85)
- Composite special diaphragm
- 1 x INLET port,1/8" NPT
- 1 x OUTLETport,1/8" NPT
- 1 x RETURN port,1/8" NPT
- 1 x boost connector, 5 mm tail (only for turbo applications)
- Pressure setting range from 1.5psi to about 5psi (plus boost if turbocharged)
- Supplied with 3 x1/8" NPT connectors (8 mm tail)
30044BYPASRE
