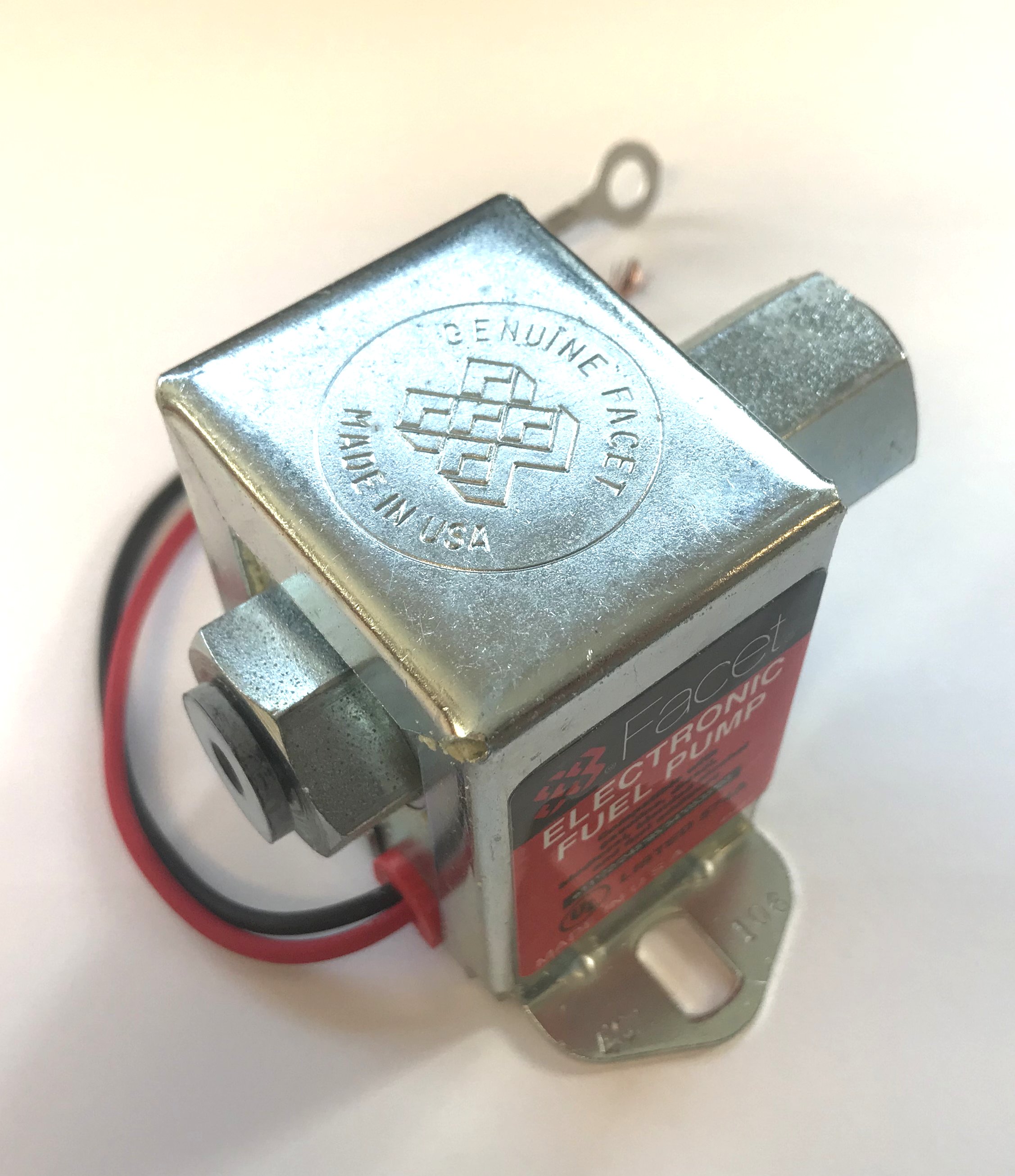

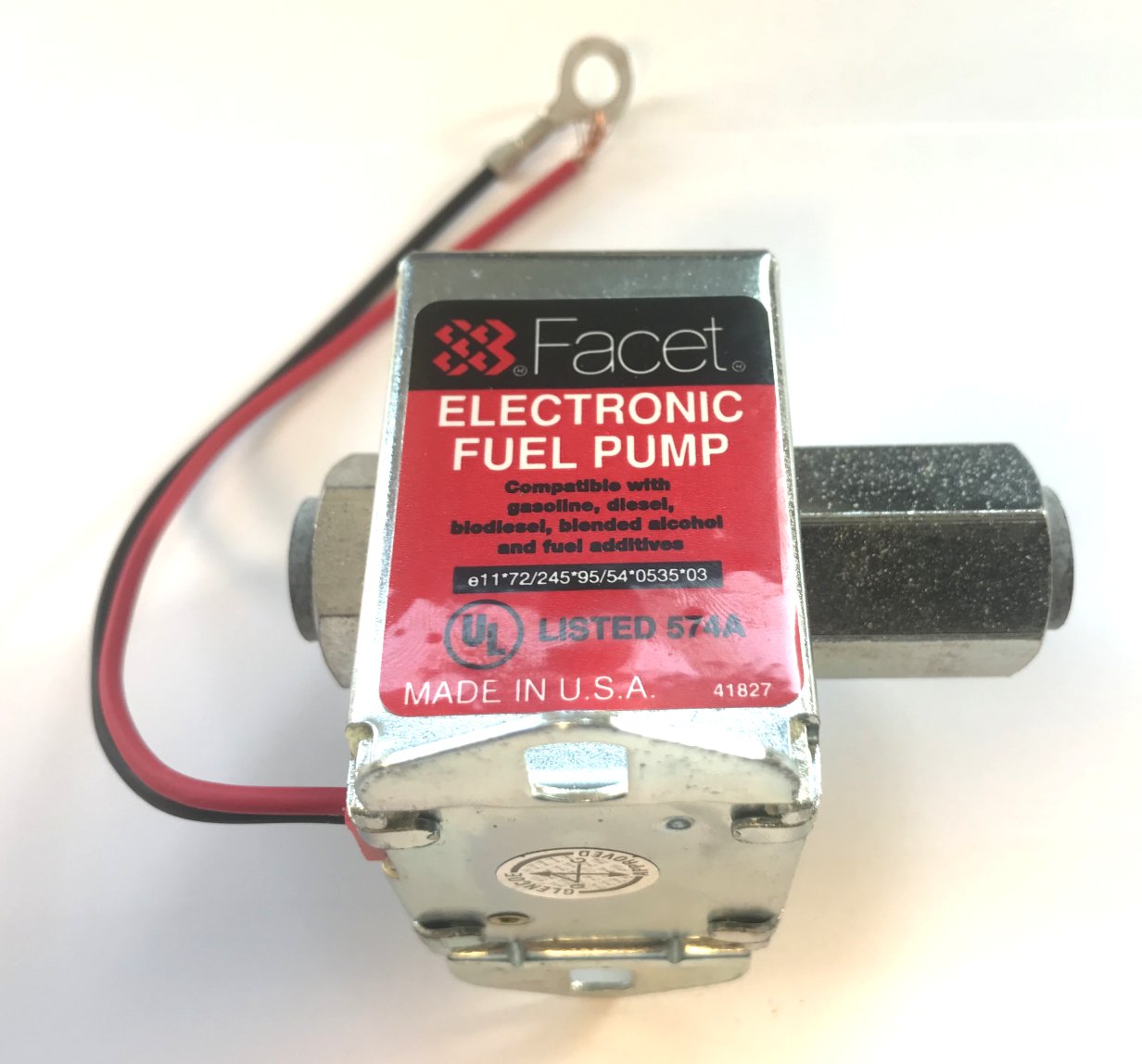

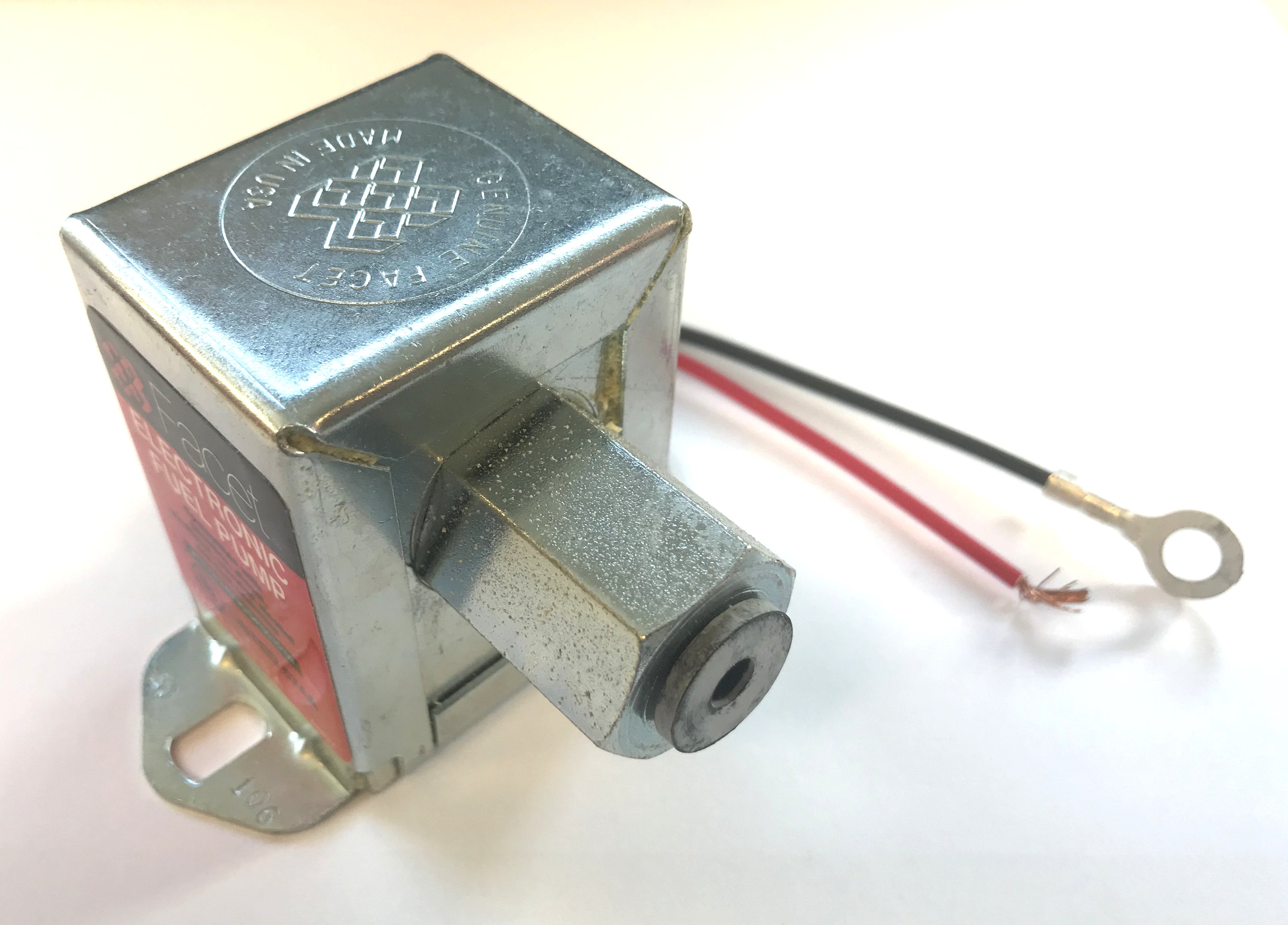

Facet 40106 Solid State Fuel Pump
These solid-state technology electronic fuel pumps provide outputs up to 132.5 liters/hour and .68 bar. Facet/Purolator Cube Fuel Pumps are self-priming with a dry lift capacity of 120 inches. Two universal models provide complete coverage for all low and high-pressure carburetor applications for cars, vans, RV’s, and light trucks, in addition to many diesel applications. All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives.
Specification:- Fast Road
Pump:- 40106
Voltage:- 12v
Earth:- Neg
Pressure (Psi):- 4.0-7.0
Flow:- US Gallons/Hr 32
Dry Prime Height in Mtrs:- 0.3
Thread Size:- 1/8th nptf
Average Run Time or MTBF:- 6000 hrs
Fuel Union Installation:- When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal
Positive Shut-Off Valve:- No
Check Valve:- No
Operating Temperature:- -40º F to +180° F
Legal Requirements:- Certified & Complies With EEC 95/54 Requirements
Length:- 75mm
Height:- 60mm
Weight:-0.5kg
Please Note:- The product in not suitable for use in the aircraft industry
Application:- Motorsport, MIlitary, Marine, Industrial
