Webcon are delighted to announce the launch of new replacement electric
fuel pumps for use on carburettor fuel systems.
The fuel pumps will suit customers who traditionally have used the small rectangular type pumps but have found them either too noisy or too unreliable.
WFP511 Electric Fuel Pump runs at 0.34 - 0.62 BAR (5.5-9.0 PSI), flows at 90 to 130 litres per hour and is extremely quiet and reliable in operation. This pump is suitable for all higher pressure carburettor installations and may require an additional fuel pressure regulator depending on the exact system pressure required. WFP511 is a "pusher" type pump which is designed to be mounted horizontally near to the base of the fuel tank.
The pump dimensions are:
Length 172mm
Diameter 54mm
and the current draw is 5 amps
Negative earth

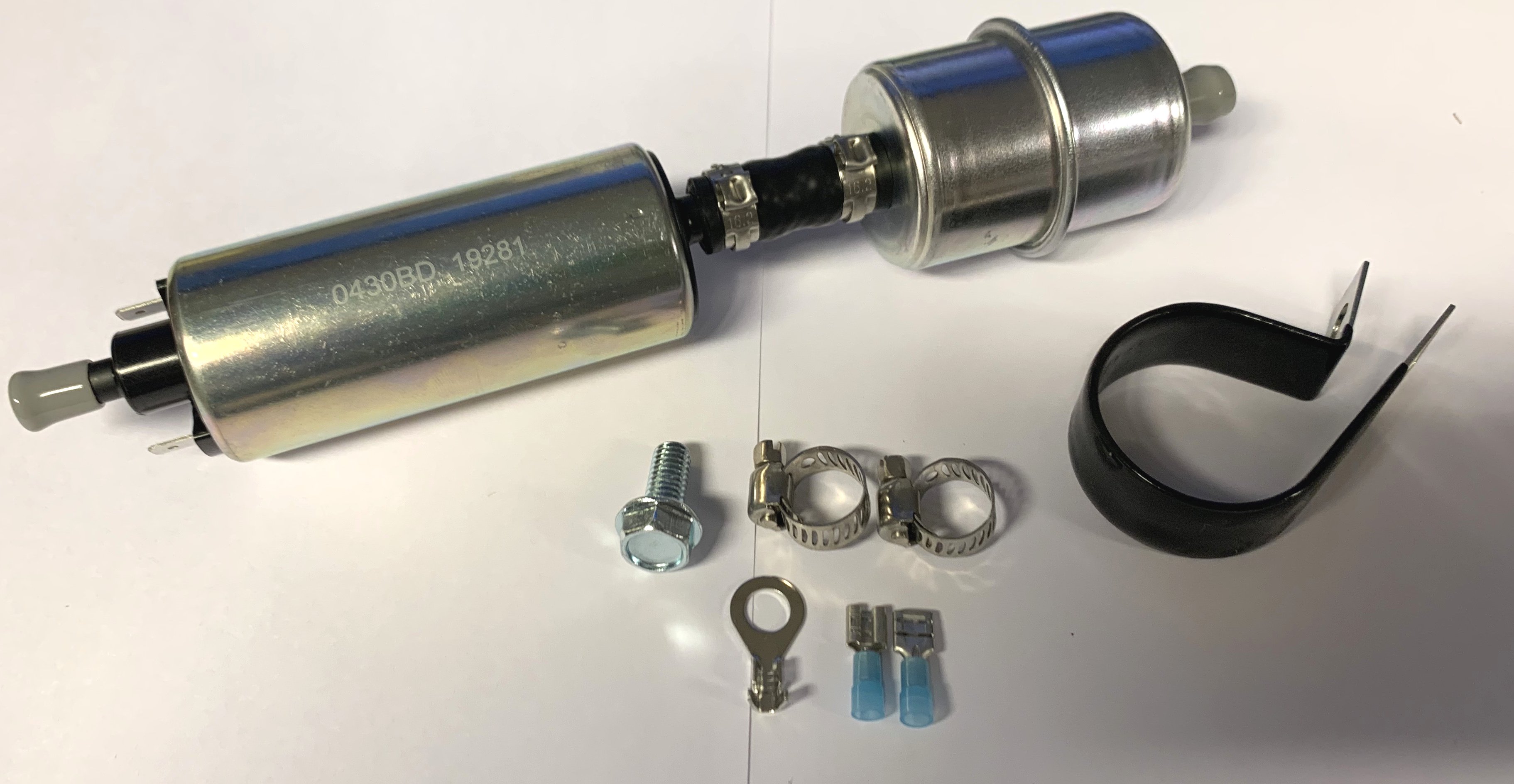

WFP511 is a fully sealed unit with steel casing and a zinc plated and yellow
passivated finish. It is supplied with attached filter, mounting bracket and
Push-On 3/8 O/D fuel pipe unions for both ends.
Inlet and outlets are threaded 1/8 NPT to take the unions.
Hose clips and 2 x 100mm lengths of fuel line are also included.
