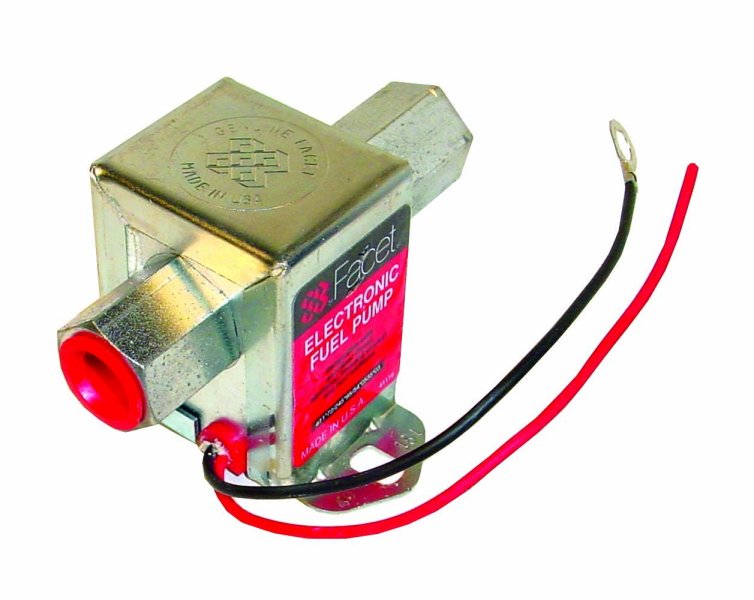

Facet 40109 Solid state fuel pump
These solid-state technology electronic fuel pumps provide outputs up to 132.5 liters/hour and .68 bar. Facet/Purolator Cube Fuel Pumps are self-priming with a dry lift capacity of 120 inches. Two universal models provide complete coverage for all low and high-pressure carburetor applications for cars, vans, RV’s, and light trucks, in addition to many diesel applications. All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives.
Specification:- Industrial
Pump:- 40109
Voltage:- 12v
Earth:- Neg
Pressure (Psi):-4-7psi
Flow:- US Gallons/Hr 32
Dry Prime Height in Mtrs:- 0.6
Thread Size:- 3/8 npt
Check Valve:- Yes
Operating Temperature:- -40º F to +180° F
Average Run Time or MTBF:- 6000 hrs
Legal Requirements:- Certified & Complies With EEC 95/54 Requirements
Length:- 100mm
Height:- 60mm
Weight:-0.5kgPlease Note:- The product in not suitable for use in the aircraft industry
