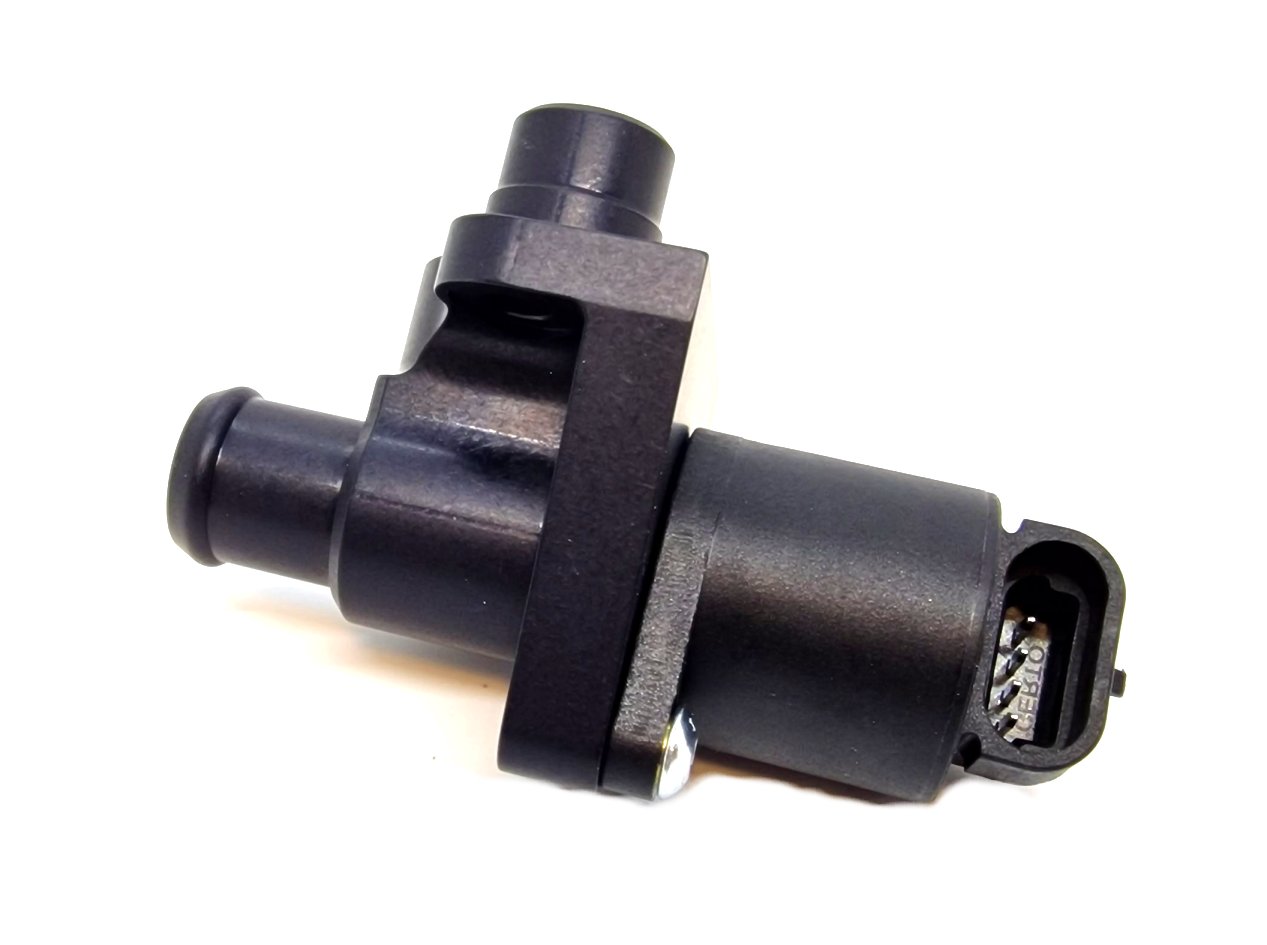

Idle motor with housing. Manufactured by Webcon, WID060 is an OEM quality idle stepper that is compatible with all major aftermarket EMS systems and can be remotely mounted to provide a reliable ECU controlled idle solution. The attached housing allows easy hose fitment.
Wiring information
Set-up: The windings are brought out to pins 1&4 for the 2 ends of the first winding and 2&3 for the second winding - each 55 ohms.
Polarity is best determined by trying - if it moves the wrong way EITHER swap pins 1&4 OR swap 2&3 with each other.
Please see related products for connector and pins and 19mm Hose and T Connector
