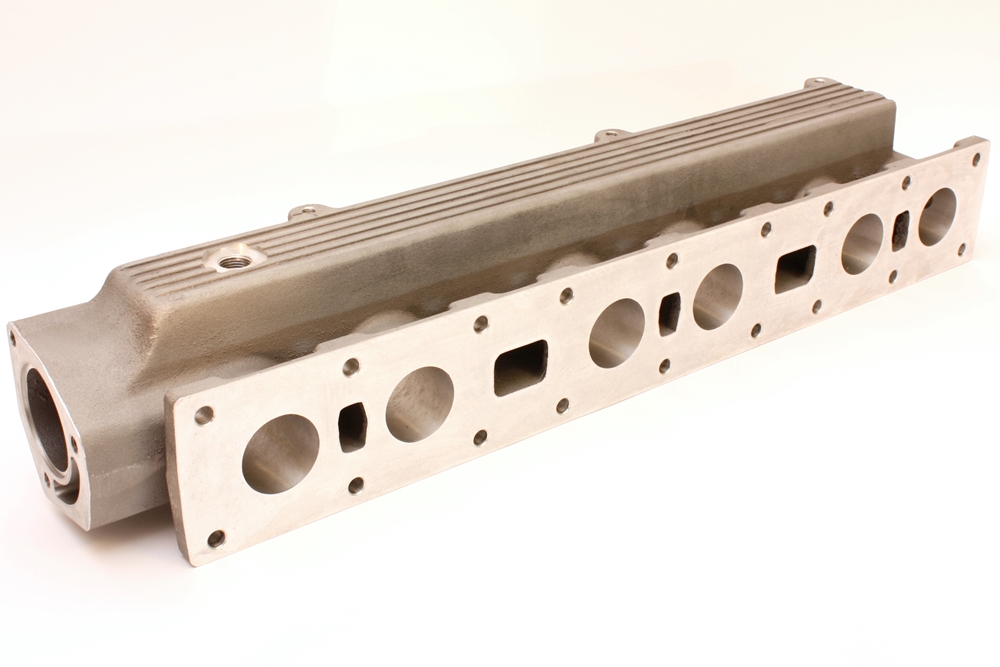

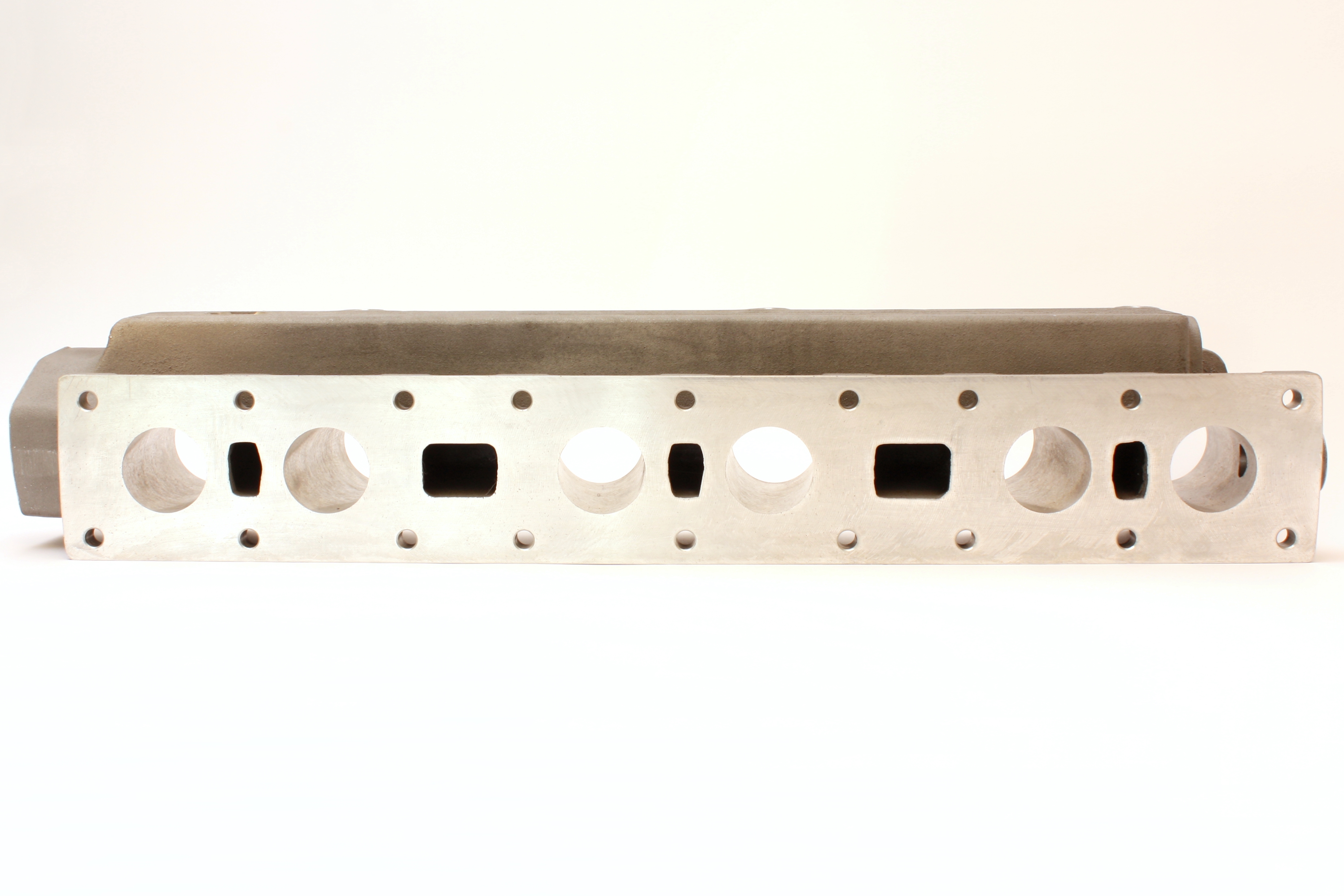

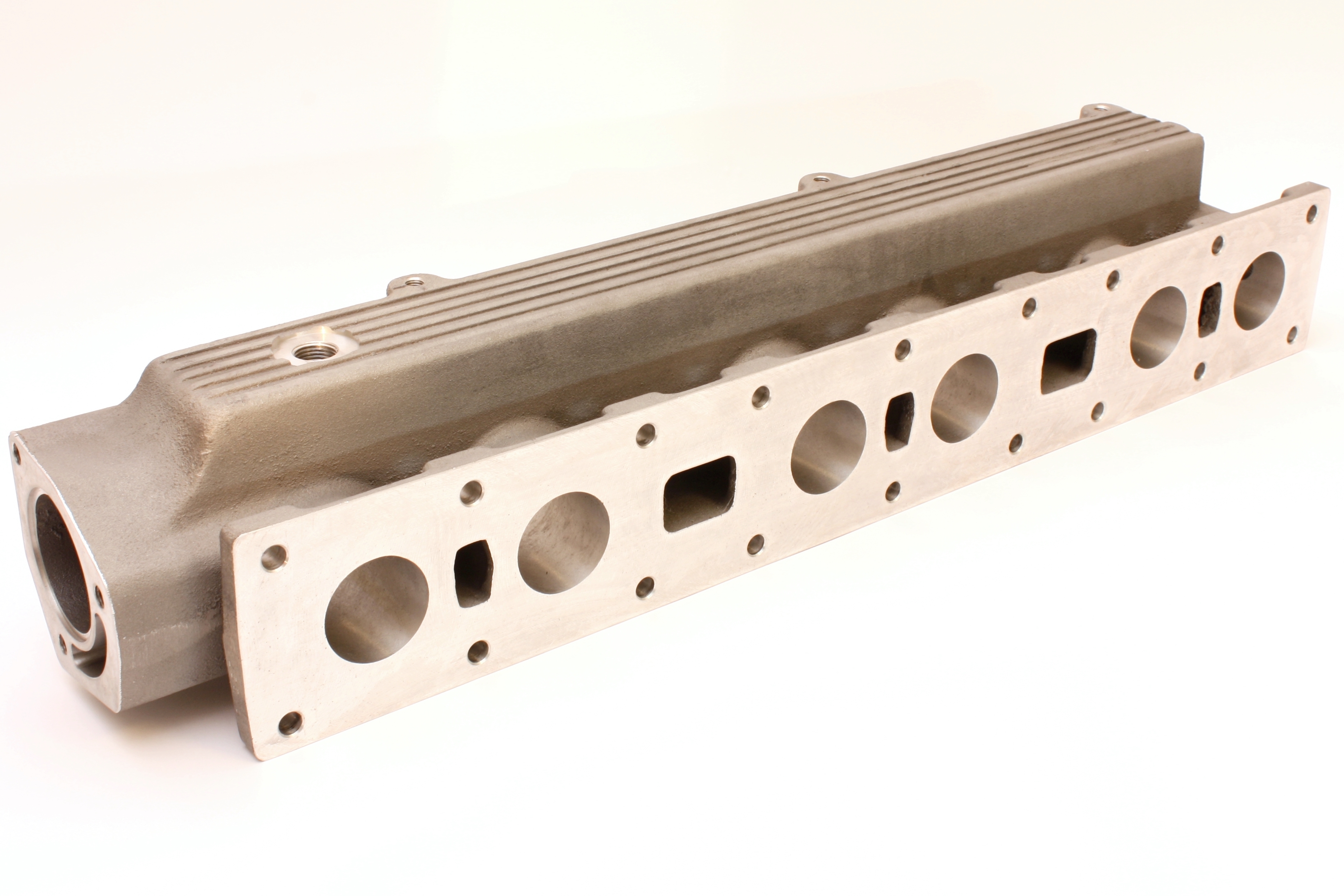

Cast Aluminium Inlet Manifold to fit 3 x 45 DCOE carburettors onto Jaguar 6 Cylinder engine.
Supplied as manifold only and will require linkage set part number LP5600.
See Part number MW3038C for complete manifold kit
Manifold depth is 110mm
Manufactured in England
Manifold threaded connections are as follows:
Top water temp sender 5/8 UNF
Coolant rear 3/8 BSB
Servo rear 1/2 BSP
110MM deep from face to face
Please note that if this kit is fitted in anything other than a S3 4.2 E type, it is likely that the OEM thermostat housing will not fit the new manifold and in that case, a replacement thermostat housing will be needed.
We have this available as part number 9990320300 in the Related Products tab
