WEBER 45 DCOE Carburettor Details

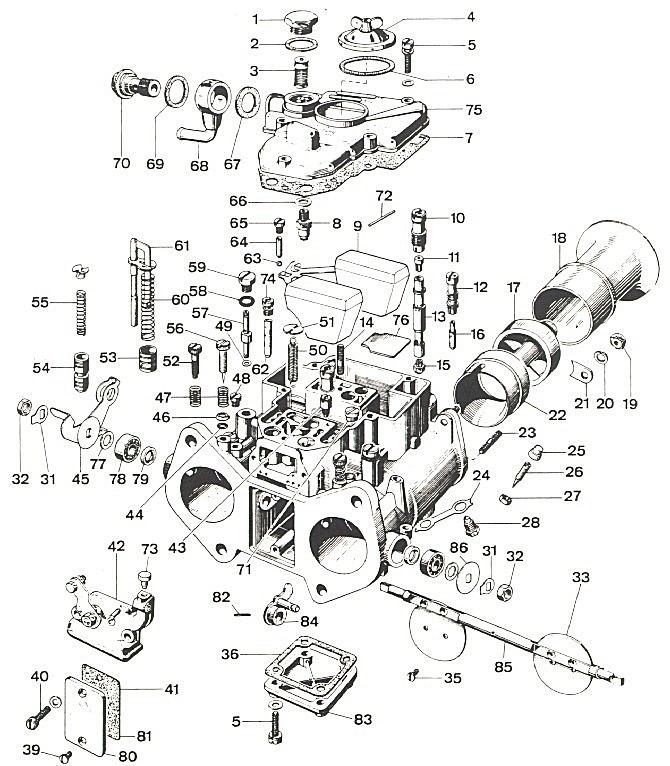

Shown below is an exploded view of the WEBER 45 DCOE carburettor. Click on a part of the carburettor to find out more about it.

45 DCOE Exploded View

WEBER 45 DCOE Exploded View

Parts List

Fig Qty Description Code Fig Qty Description Code
1 1 Filter Cover 61002.010 48 2 Vacuum Take-Off Cover 64590.008
2 1 Filter Cover Gasket 41530.024 M 49 2 Pump Jet Gasket 41535.021 M
3 1 Filter Element 37022.002 M 50 1 Spring 47605.012
4 1 Jet Inspection Cover 32376.003 51 1 Spring Anchor Plate 52210.006
5 9 Screw 64700.001 52 1 Throttle Stop Screw 64625.012
6 1 Jet Inspection Cover Gasket 41550.002 M 53 1 Pump Plunger 58602.003
7 1 Top Cover Gasket 41715.011 M 54 2 Starter Valve 64330.003
8 1 Needle Valve 79503.200 M 55 2 Starter Valve Spring 47600.105
9 1 Float 41030.034 56 2 Idle Mixture Screw 64750.003
10 2 Emulsion Tube Holder 52580.001 57 2 Pump Jet 76801.045
11 2 Air Corrector Jet 77401.155 58 2 Pump Jet 'O' Ring 41565.009 M
12 2 Idle Jet Holder 52585.006 59 2 Pump Jet Cover 61015.008
13 2 Emulsion Tube 61450.181 60 1 Pump Rod Spring 47600.064
14 1 Stud 64955.007 61 1 Pump Rod 10410.015
15 2 Main Jet 73401.145 62 2 Starter Jet 75507.085
16 2 Idle Jet 74821.055 63 2 Pump Demand Valve Ball 58300.003
17 2 Auxiliary Venturi 69602.450 64 2 Pump Valve Weight 52730.001
18 2 Air Horn 52840.001 65 2 Pump Demand Valve Cover 61015.006
19 4 Air Horn Fixing Nut 34705.004 66 1 Needle Valve Gasket 83102.120 M
20 4 Spring Washer 55525.010 67 1 Fuel Union Gasket 41530.031 M
21 4 Air Horn Tab 52150.004 68 1 Fuel Union 10536.035
22 2 Venturi (Choke Tube) 72116.360 69 1 Fuel Union Gasket 41530.024 M
23 4 Stud 64955.110 70 1 Fuel Union Bolt 12715.008
24 2 Lock Washer 52155.003 71 2 Progression Hole
25 2 Air By-Pass Screw Cap 14945.003     Inspection Cover 61015.009
26 2 Air By-Pass Screw 64750.002 72 1 Float Pin 52000.001 R
27 2 By-Pass Screw Lock Nut 34705.001 73 1 Choke Cable Clamp 64605.017
28 2 Locking Screw 64840.003 74 2 Starter Air Jet 77505.150
31 2 Lock Washer 55520.004 R 75 1 Carburettor Top Cover 31734.198
32 2 Throttle Spindle Nut 34710.003 76 1 Plate 52130.003
33 2 Throttle Plate 64005.084 77 2 Washer 55510.128
35 4 Throttle Plate Screw 64520.027 78 2 Bearing 32650.001
36 1 Bottom Cover Gasket 41640.001 R 79 2 O' Ring 41575.019
39 2 Inspection Cover Fixing Screw 64750.009 80 1 Inspection Cover 52135.024
40 2 Choke Cover Fixing Screw 64700.004 81 1 Gasket 41640.021
41 1 Pump Cover Gasket 41640.021 R 82 1 Pin 58445.001
42 1 Choke Cover 32556.018 83 1 Cover 32374.008
43 1 Pump Spill 79701.040 84 1 Pump Cam 45082.005
44 2 Idle Mixture Screw 'O' Ring 41565.002 M 85 1 Throttle Spindle 10005.447
45 1 Throttle Lever 45048.007 86 1 Washer 55555.010
46 2 Idle Mixture
    Screw Cup Washer 58000.006 M + R Service Kit 92.1514.05.01
47 3 Spring 47600.007

Calibration

Choke 36 Throttle Plate Angle 78 degrees
Auxiliary Venturi 4.5 Needle Valve 200
Main Jet 145 Pump Jet 45
Air Corrector Jet 155 Pump Spill 40
Emulsion Tube F16 Float Level 12 mm
Idle Jet 55 F8 Starter Jet Fuel 85/F9
Idle Mixture Orifice/Bush 100 Starter Jet Air 150
Progression Holes 120/100/80
