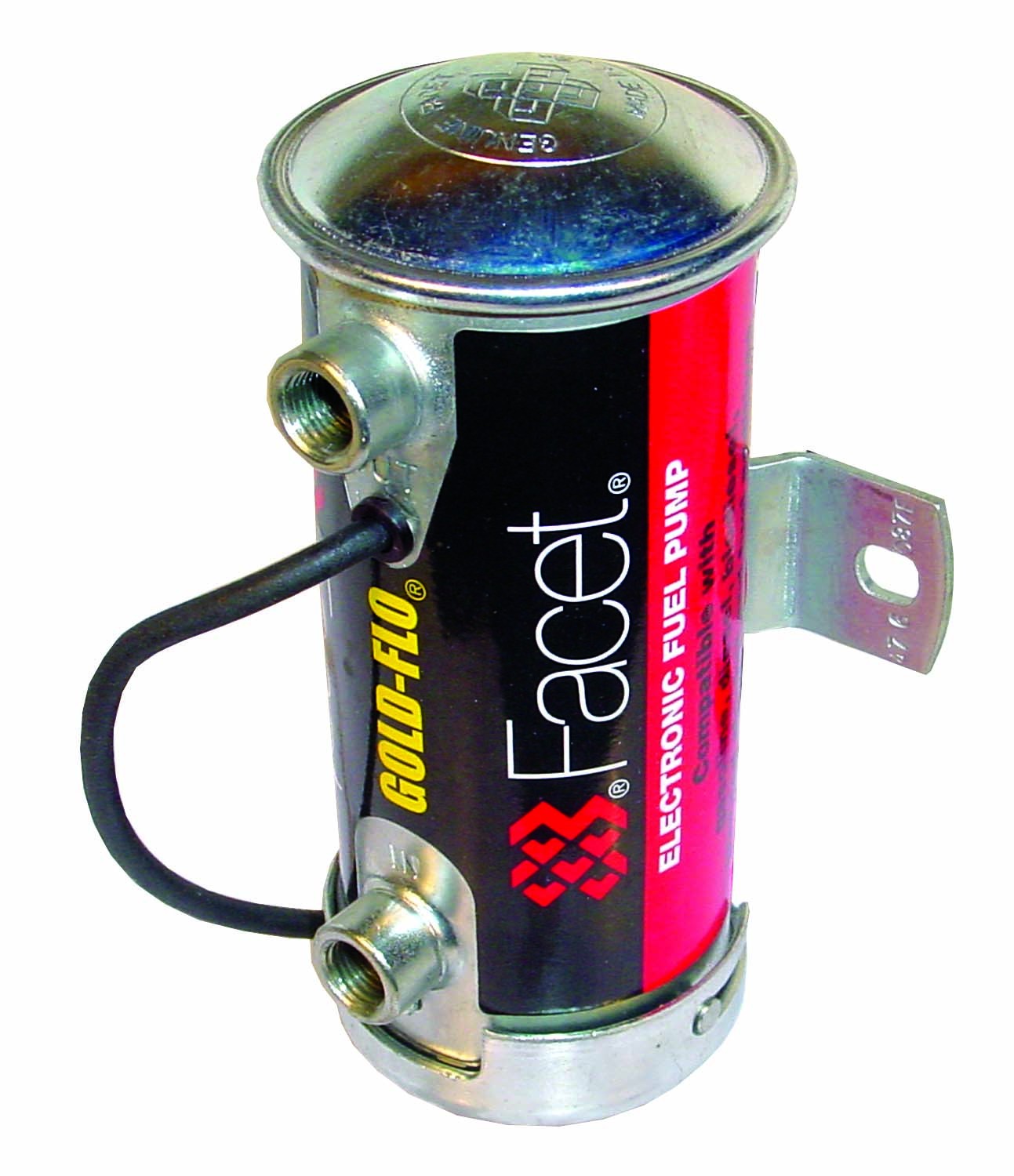

An industry standard for over 60 years, these lightweight compact pumps can be found in almost every conceivable application. With output ranges up to 170.3 liters/hour, .68 bar, these pumps will provide high-performance output for everything from racing cars to heavy duty agricultural and construction machinery. E10 E85 Compatible.

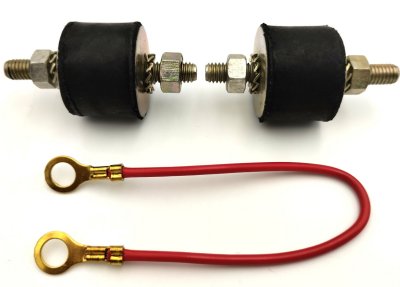

Please note. Not supplied with unions or Facet Fuel Pump mounting kit. Please see Related Products tab for straight and angled 1/8 NPT x 8mm unions and mounting kit.
Specification:- Road
Pump:- 476087
Voltage:- 12v
Earth:- Neg
Pressure (Psi):- 4.0-5.5
Flow:- US Gallons/Hr 30
Dry Prime Height in Mtrs:- 0.6
Thread Size:- 1/8th nptf
Operating Temperature:- -40º to +180° F (all Models)
Average Run Time or MTBF:- 6000 hrs
Legal Requirements:- Certified & Complies With EEC 95/54 Requirements
Length:-140mm
Diameter:- 54mm
Please Note:- Designed and manufactured to automotive specification and not recommended for the maintenance of flight
Applicatins:- Motorsport, Military, Marine, Agriculture
