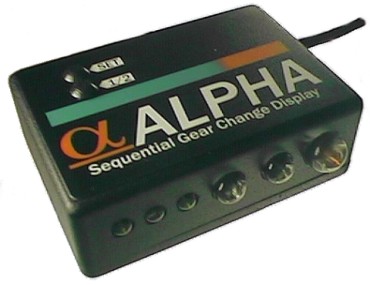

A gear change indicator incorporating 6 lamps that illuminate in sequence as you approach the optimum gear change engine speed. Design features include the increasing size and brightness of the LEDs and a final ultra-bright Red LED that illuminates at the pre-set engine speed. The purpose of the sequential operation is to inform the driver of the approaching gear change point and takes in to account the rate of engine acceleration in different gears. This method has been used to great effect in Formula 1, Super Touring, World Rally Championship and other top motorsport formulae.

FEATURES

• 6 Ultra-bright water clear light emitting diodes :

  • 3 x 5mm green
  • 2 x 8mm green
  • 1 x 10mm red

• All LEDs are clearly visible in bright sunlight
• Display range 90-100% of set maximum engine speed, e.g. 5400-6000rpm
• Simple 3 wire connection - 12V power supply, ground and ignition coil negative
• Fully user programmable with half engine speed switch for easy setting
• Instantaneous response
• Suitable for 4, 6, 8 and 12 cylinder engines
• Suitable for distributor or distributorless ignition systems
• Supplied with universal loom
• Reverse polarity protected
• Dimensions : H=25mm, W=73mm, D=51mm
